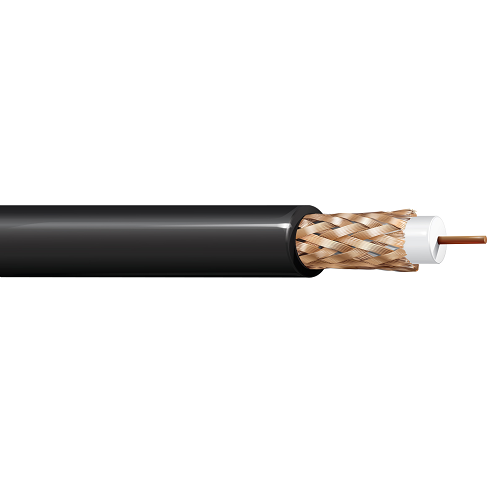

Belden 643948 20 AWG 1 Conductor Solid Bare Copper 300V Surveillance CCTV Cable

Description:

Surveillance, CCTV, RG-59, 20 AWG solid bare copper, foam FEP core, 95% bare copper braid, Low Smoke PVC jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.133 in (3.38 mm)

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.192 in (4.88 mm)
• Overall Cable Diameter (Nominal): 0.192 in (4.88 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -20°C to +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Surveillance, CCTV Camera

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 643948
