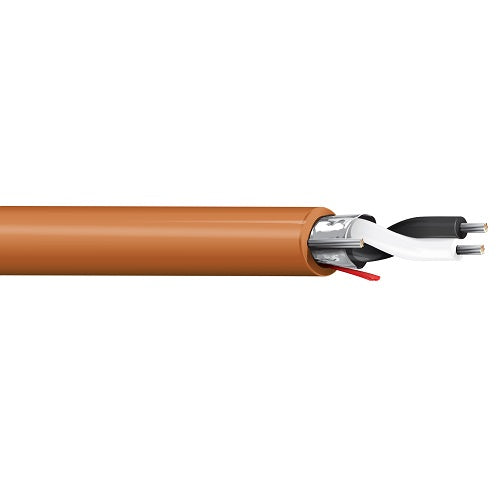

Belden 5660FT 24 AWG 1 Pair Solid Tinned Copper 300V Thermostat and Control Cable

Description:-

Thermostat and Control Cable, Riser-CMR, 1-24 AWG solid tinned copper pair with foam polyolefin insulation, Beldfoil shield, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.138 in
• Overall Cable Diameter (Nominal): 0.138 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Thermostat, Control, Noisy Environment

Specifications:-

• Size (AWG): 24
• No. of Pairs: 1
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 5660FT
