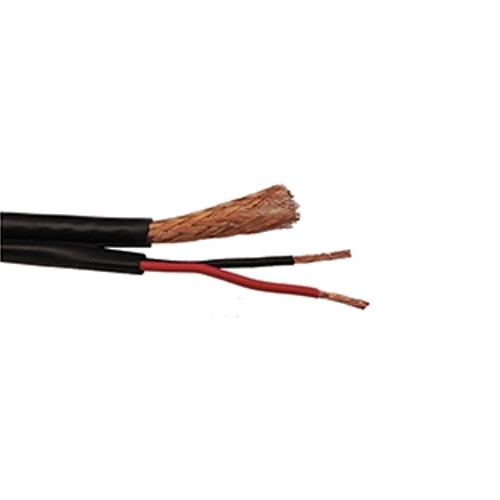

Belden 5499X5 20 AWG 1 Conductor Solid Bare Copper 300V Surveillance and CCTV Cable

Description:

Coax: 20 AWG solid bare copper conductor, gas-injected foam polyethylene insulation (95% coverage), water resistant tape. Pair: 18 AWG stranded (7x26) bare copper conductor, PVC insulation, water resistant tape, overall PVC jacket.

Insulation:

• Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Dia. (in.): 0.145

Inner Shield:

• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 95

Outer Jacket:

• Material: PVC - Polyvinyl Chloride

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +80°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Siamese, Low Voltage, CCTV, Sunlight Resistant, Moisture Resistant

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 5499X5
