Product Information

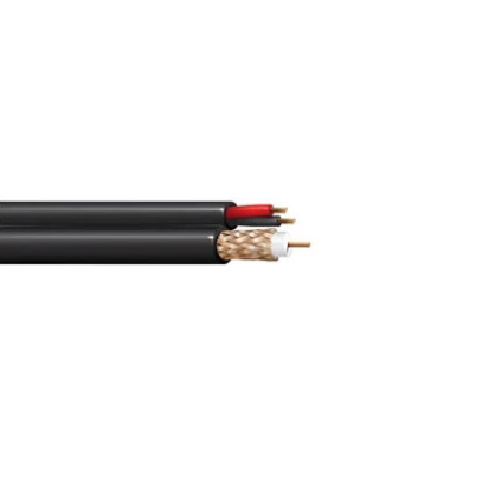

Belden 5399X5 18 AWG 1 Conductor Solid RG-6 Surveillance 75 Ohm Coax Cable
Description:
PTZ (CCTV+Power) Cable, Rated-CM, 1-RG6 18 AWG solid bare copper with foam polyolefin, 95% bare copper braid, water-resistant tape, 2-16 AWG stranded bare copper conductors with PVC insulation and water-resistant tape, Overall PVC jacket.
Insulation:
• Material: FPE - Foam Polyethylene
• Nom. Insulation Diameter: 0.180 in
Inner Shield:
• Inner Shield Type: Braid
• Material: BC - Bare Copper
• Coverage (%): 95
Specifications:
• Size (AWG): 18
• Stranding: Solid
• Nom. Diameter: 0.040 in
• RG Type: 6
• Pair Conductor: 16 AWG
• Pair Conductor Stranding: 19
• Nom. Diameter: 0.057 in
• Conductor Material: BC - Bare Copper
• Part Number: 5399X5
• Size (AWG): 18
• Stranding: Solid
• Nom. Diameter: 0.040 in
• RG Type: 6
• Pair Conductor: 16 AWG
• Pair Conductor Stranding: 19
• Nom. Diameter: 0.057 in
• Conductor Material: BC - Bare Copper
• Part Number: 5399X5
