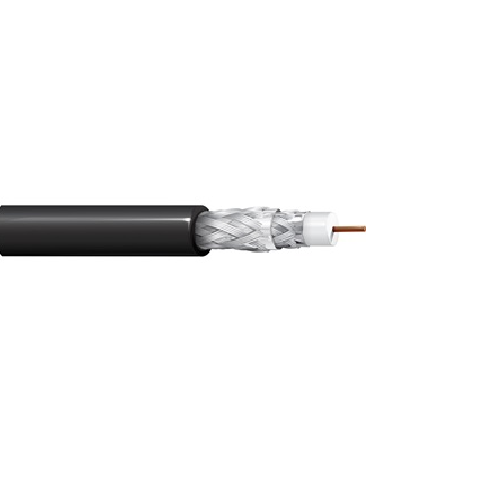

Belden 5339Q5 18 AWG 1 Conductor Solid RG-6 Surveillance 75 Ohm Coax Cable

Description:

Surveillance, CATV and MATV Cable, RG6, Rated-CM, 18 AWG solid bare copper, foam polyolefin core, quad shield-Duofoil + 60% aluminum braid + Duofoil + 40% aluminum braid, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duofoil Material Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duofoil Material Trade Name, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.298 in

Applications:

• CATV, MATV
