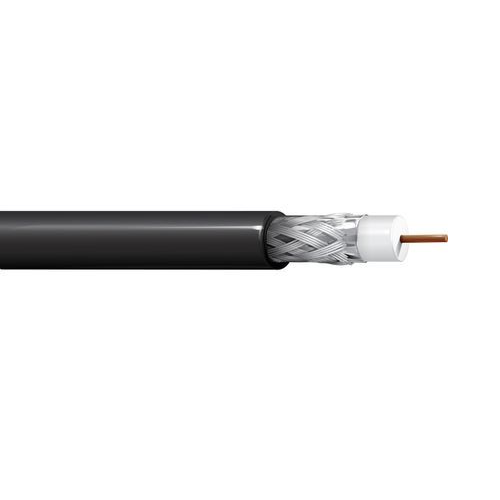

Belden 5339B5 18 AWG 1 Conductor Solid RG-6 Surveillance 75 Ohm Coax Cable

Description:

Surveillance, CATV and MATV Cable, RG6, Rated-CM, 18 AWG solid bare copper, foamed polyolefin core, Duofoil+60% aluminum braid, PVC jacket.

Insulation:

• Material: Gas-injected FPE - Foam Polyethylene
• Nom. Insulation Diameter: 0.180

Outer Shield:

• Layer 1: Outer Shield Type Tape, Aluminum Foil-Polyester Tape-Aluminum Foil Material, Duofoil Outer Shield Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, AL - Aluminum Material, Coverage 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Overall Cable Diameter (Nominal): 0.266 in.
