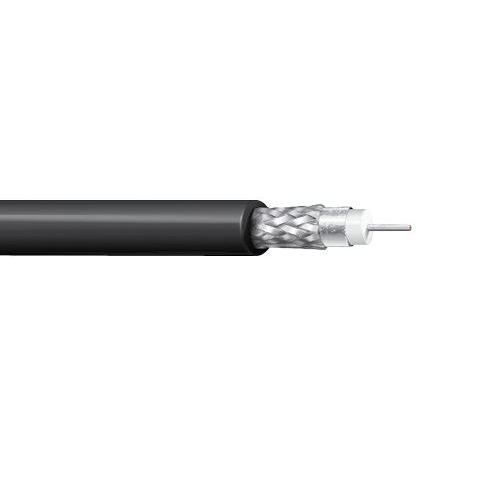

Belden 4694R 18 AWG 1 Conductor Solid RG-6 75 Ohm Coax Cable

Description:

4K UHD Coax for 12G-SDI, 75 Ohm, RG-6, 18 AWG Solid SC, Foil + 95% TC Braid, PVC Jkt, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Duobond II Material Trade Name, Coverage 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.274 in (6.96 mm)
• Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)

Applications:

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
