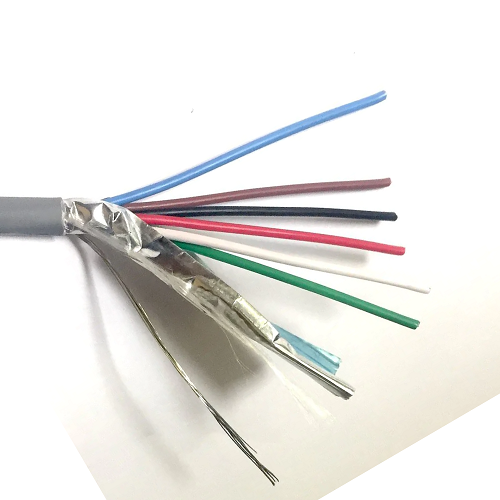

Belden 2154PE 20 AWG 3 Pair Bare Copper 300V Commercial Audio Cable

Description:-

Commercial Audio Cable, 3 Pair, 20 AWG, Bare Copper, Flamarrest PVC Insulation, Beldfoil Shield, Flamearrest PVC Jacket with ripcord, CMP rated.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nominal Wall Thickness: 0.010 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 24 AWG TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.235 in

Applications:

• Nurse Call System

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -0°C To +75°C

Specifications:-

• Size (AWG): 20
• No. of Pair: 3
• Conductor Material: Bare Copper
• Part Number: 2154PE
