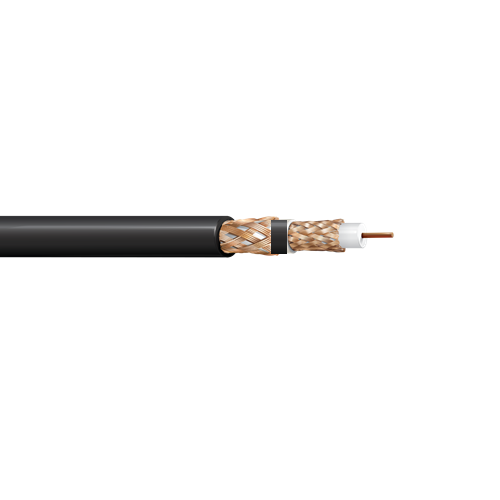

Belden 1856B 20 AWG 1 Conductor Solid Bare Copper 300V Video Triax Cable

Description:

20 AWG solid 0.032" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shields (95% coverage), Belflex jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.145 in
• Gas Injected

Inner Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.216 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Belflex
• Nom. Diameter: 0.36 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -35°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: RG59
• Nominal Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 1856B
