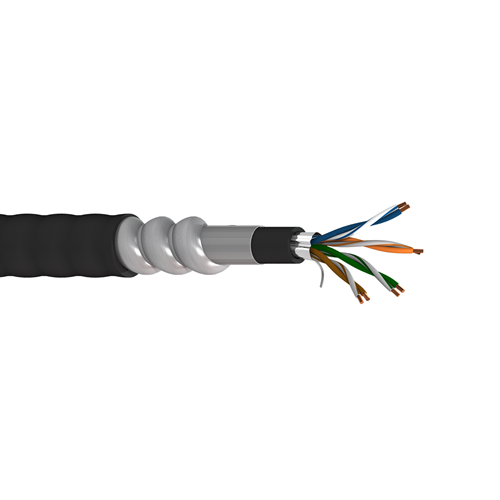

Belden 127903A 22 AWG 4 Pair Solid Bare Copper AIA Armor Cat 5e DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Pair 22 AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, PLTC CMG CM, -40C.

Insulation:

• Material: PO - Polyolefin

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.335 in (8.51 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC

Armor:

• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in (0.64 mm)
• Diameter Over Armor: 0.565 in (14.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.655 in (16.6 mm)
• Overall Cable Diameter (Nominal): 0.655 in (16.6 mm)
• Polyester Tape

Standards:

• Voltage Rating: 300 V (CM)
• Operating Temperature: -40°C To +75°C

Applications:

• harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc., exposure to rodent, crush, or cut through force, power-limited
tray,

Specifications:

• Size (AWG): 22
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 127903A
