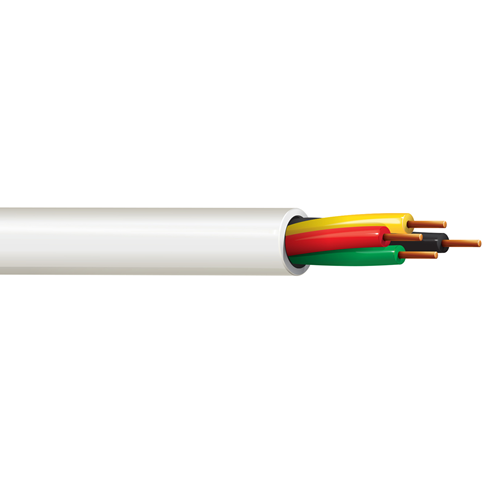

Belden 1242A 22 AWG 4 Conductor Solid Bare Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 4-22 AWG Solid Bare Copper Conductors, Polyolefin Insulated, PVC Jacket, CM Rated.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.0437 in (1.11 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.156 in (3.96 mm)
• Overall Cable Diameter (Nominal): 0.156 in (3.96 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +60°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 1242A
