9457711500 - 15m PUR Valve Cable with 18mm Plug Design
9457711500 - 15m PUR Valve Cable with 18mm Plug Design
SKU: SKU: 9457711500 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

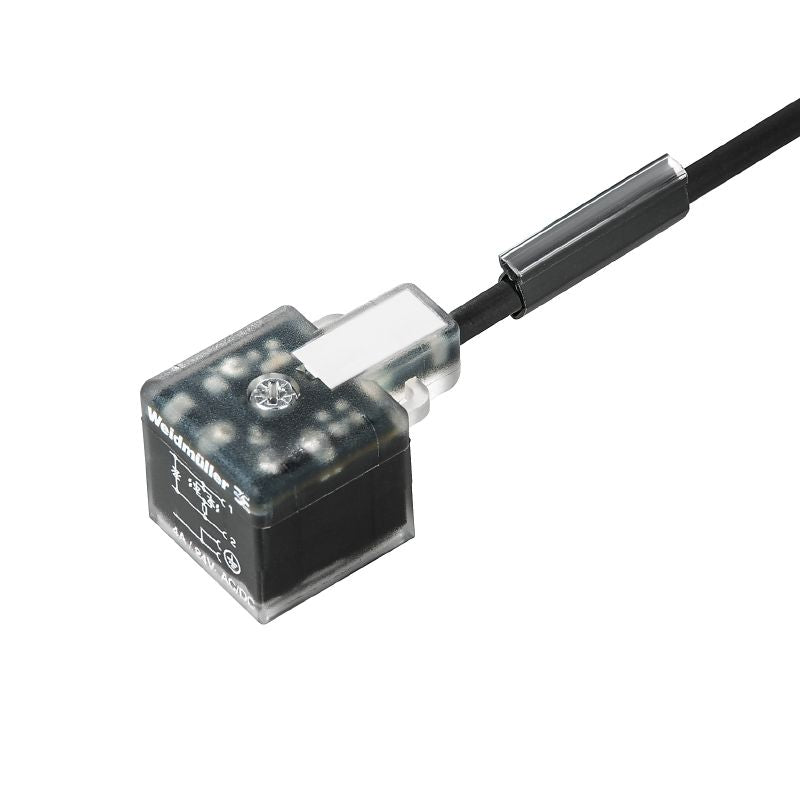

Introducing the SAIL-VSA-15U valve cable, expertly crafted with a valve plug design A (18 mm) at one end Measuring a generous 15 meters in length, this cable is made from durable PUR and features a classic black sheath, making it an ideal choice for a variety of applications.
Features and Benefits:
•Compliant with RoHS directives.
•Resistant to bending cycles up to 2 million.
•Temperature range suitable for moving applications from -25 °C to 80 °C and stationary applications from -50 °C to 80 °C.
•Suitable for cable carriers.
•Includes protective circuits with Zener diode.
•Led included.
Specifications:
| Acceleration | 5 m/s² |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Core cross-section | 0.5 mm² |
| Insulation | PP |
| Number of poles | 3 |
| Outside diameter | 4.6 mm ± 0.2 mm |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Speed | 200 m/s |
| Nominal current | 4 A |
| Nominal voltage | 24 V |
| Protection degree | IP67 |
| Temperature range of housing | -25…+80 °C |

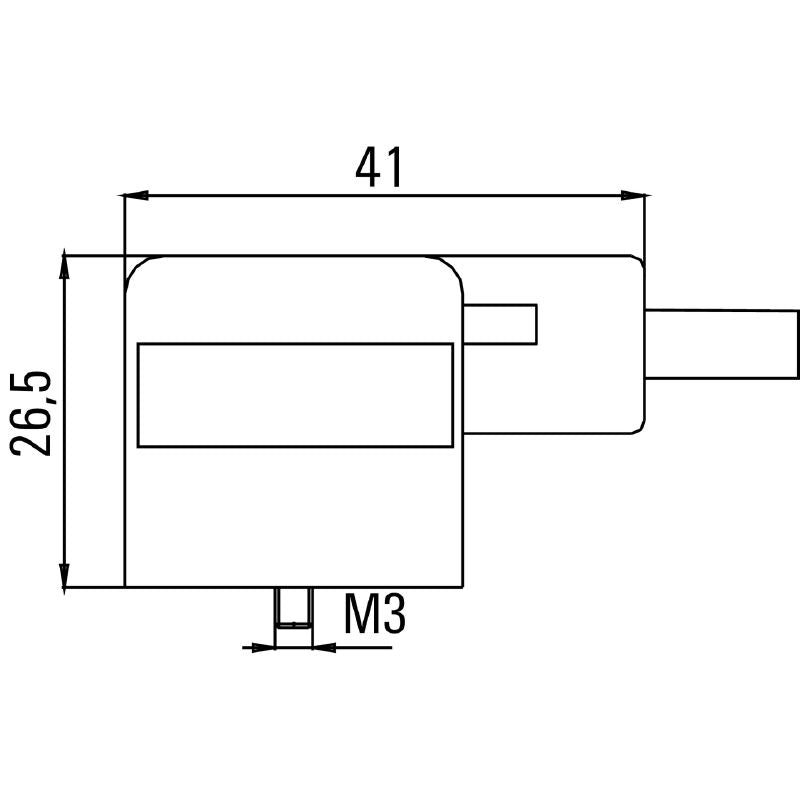

| Tightening torque | Mounting screw M3: 0.4 Nm |
| Connection thread | Miscellaneous |
| Contact material | CuZn |
| Contact surface | tinned |
| Welding spark resistance | No |
| Halogen | No |
