9457681500 - 15m Industrial Valve Cable with M12 Connectors

9457681500 - 15m Industrial Valve Cable with M12 Connectors

SKU: SKU: 9457681500   Download PDF

Select a Variant:
  • 9457681500 - 15m Industrial Valve Cable with M12 Connectors
Qty:
Regular price Now $29.48   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $29.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-VSB-M12G-15U valve cable, featuring a robust industrial design With a length of 15 meters, this cable boasts assembled straight and valve plugs, equipped with M12 A-coded connectors Constructed from durable black PUR material, it combines functionality with reliability for industrial applications.

Features and Benefits:

    •Compliant with RoHS exemption.

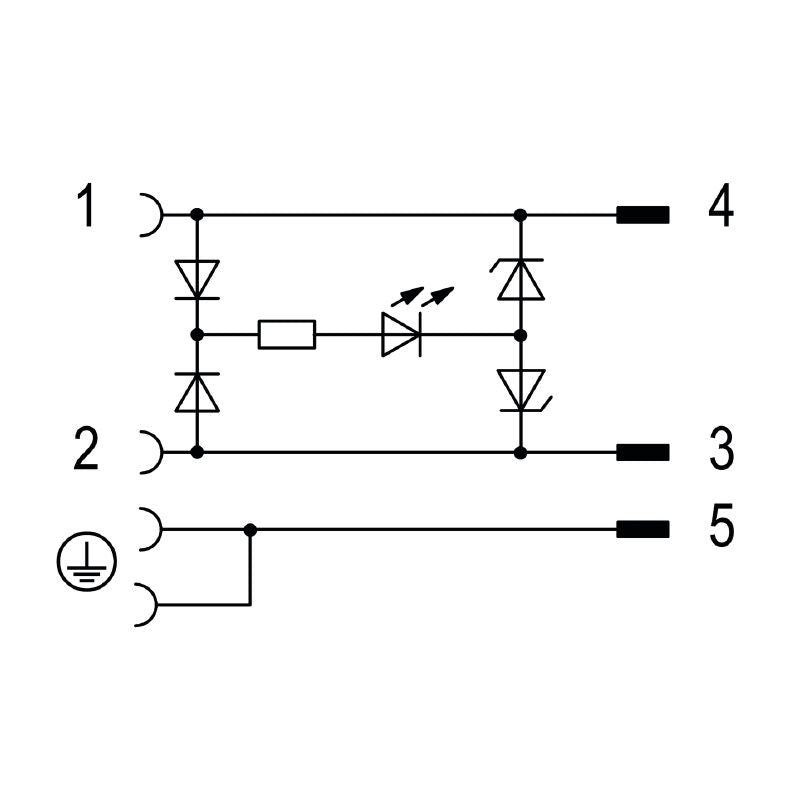

    •Contains a Zener diode for protective circuits.

    •LED indicator.

    •Suitable for cable carriers.

    •High bending cycle endurance with 2 million cycles.

Specifications:

 Cable length 15 m
 Outside diameter 4.6 mm ± 0.2 mm
 Core cross-section 0.5 mm²
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67 when screwed in
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Halogen No
 Insulation PP
 Number of poles 3
 Sheath material PUR
 Sheathing colour black
 Shielded No
 Speed 200 m/s
 Torsion resistance 0 °/m
 Welding spark resistance No
