9457670300 - 3m Angle 90° Unshielded 5-Pole Sensor Cable in PUR

9457670300 - 3m Angle 90° Unshielded 5-Pole Sensor Cable in PUR

SKU: SKU: 9457670300

Select a Variant:
  • 9457670300 - 3m Angle 90° Unshielded 5-Pole Sensor Cable in PUR
Qty:
Regular price Now $10.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

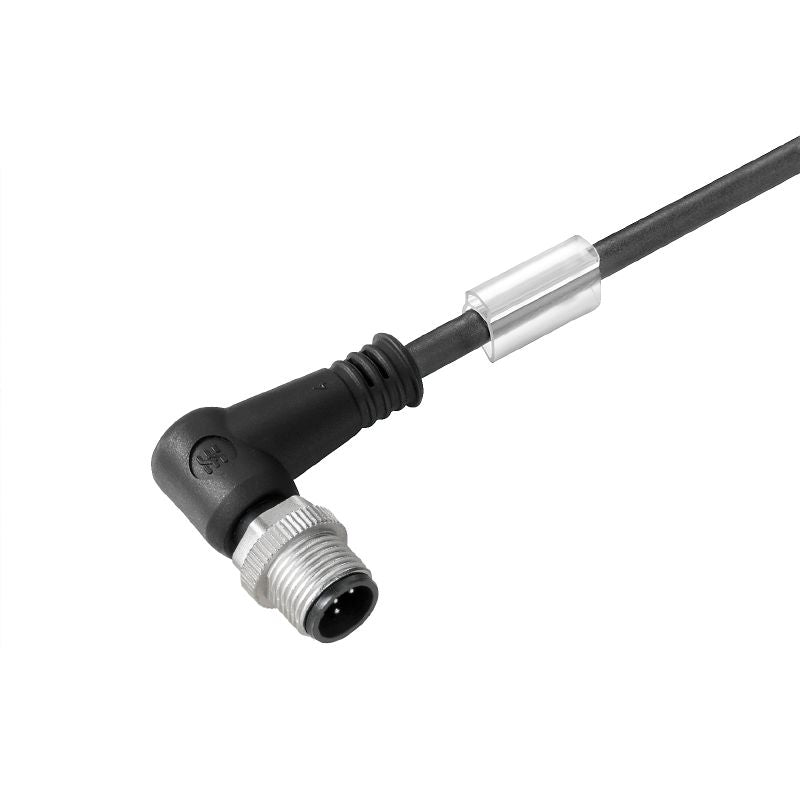

Introducing the SAIL-M12W-5-30U, a specialized sensor/actuator cable that measures 3 meters in length This cable features a 5-pole design with a 90° angled pin configuration on one end, allowing for easy connection in tight spaces Crafted from durable PUR material, it is halogen-free and unshielded, ensuring versatility for various applications Ideal for your technical needs, this cable combines reliability and functionality.

Features and Benefits:

    •Unshielded design.

    •Halogen-free sheath material.

    •Lightweight at 108.24 g.

    •Durable with a high number of bending cycles.

Specifications:

 Cable length 3 m
 Number of poles 5
 Outer diameter 4.7 mm ± 0.15 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68, IP69
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Insulation resistance 10^8 Ω
 Bending cycles 12 million
 Core cross-section 0.34 mm²
 Housing main material PUR
 Connection thread M12
 Plugging cycles ≥ 100
 Coding A-coded
