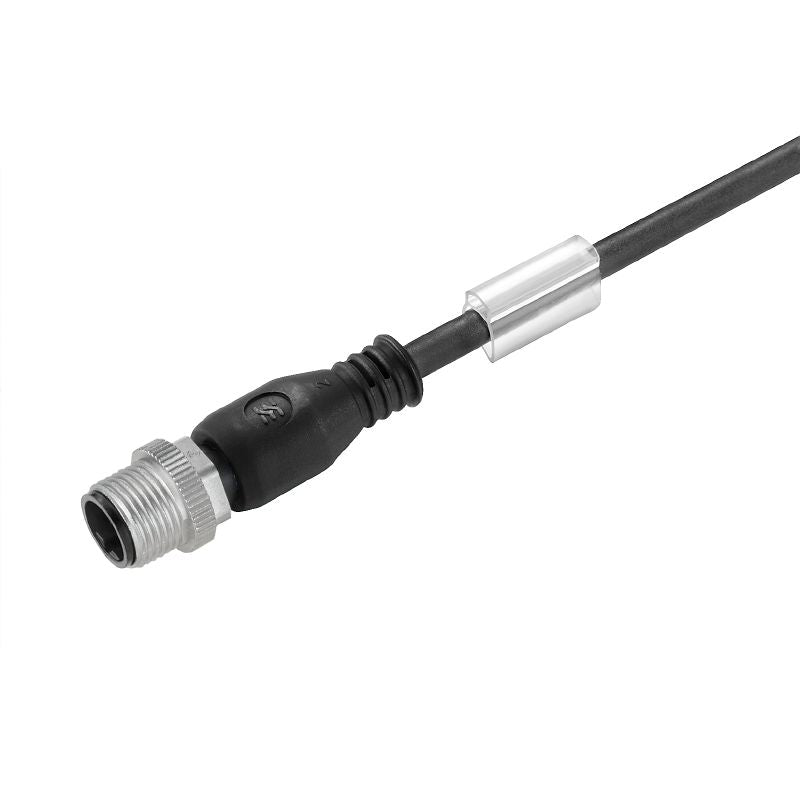

9457610100 - 1m Shielded 5-Pole Sensor Actuator Cable, Halogen-Free PUR

SKU: SKU: 9457610100

Variant:

9457610100 - 1m Shielded 5-Pole Sensor Actuator Cable, Halogen-Free PUR

Now $7.54

~~BEFORE $0.00~~ Now $7.54

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M12G-5-10U sensor/actuator cable, expertly crafted to provide reliable connectivity over a 1-meter length This five-pole cable features a straight pin design and is shielded for enhanced protection Made from halogen-free PUR material, it meets several compliance standards, including RoHS For additional assurance of quality, it carries UL file number E307231, making it a dependable choice for various applications.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Hydrolysis and microbe resistant.

•LABS-free.

•Suitable for cable carriers.

Specifications:

Acceleration	5 m/s²
Bending cycles	12 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	1 m

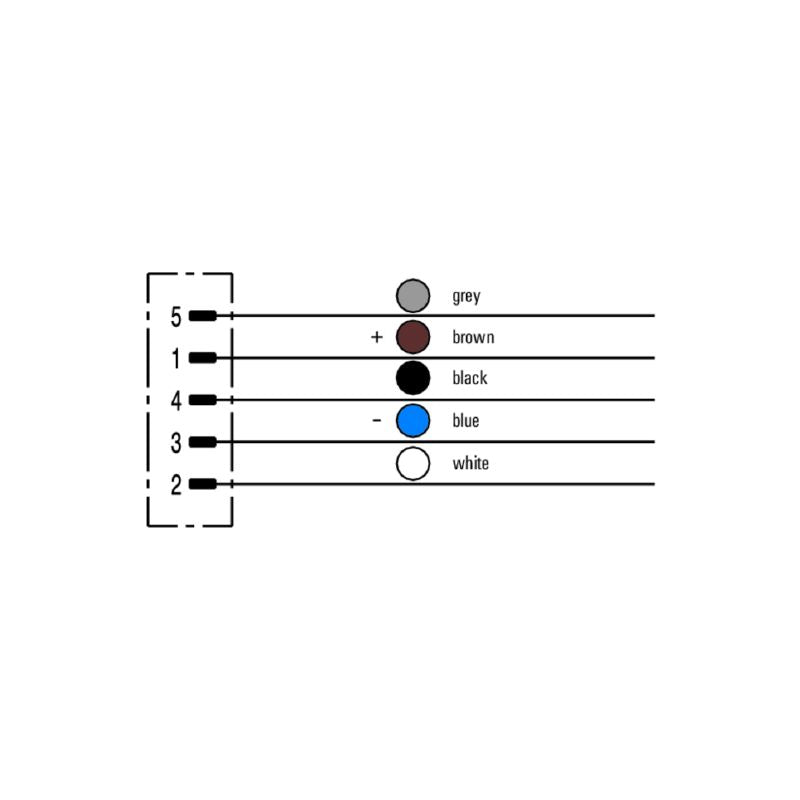

Colour coding	brown, white, blue, black, grey
Configurable cable length	No
Core cross-section	0.34 mm²
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Halogen	No
Insulation	PP
Irradiation crosslinked	No
Length of torsion	1 m
Number of poles	5
Number of wires	5
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Outside diameter	4.7 mm ± 0.15 mm
Resistance to oils	Yes
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2, in accordance with IEC 60332-2-2
Sheath material	PUR
Shielded	No
Speed	3.33 m/s
Temperature range, moving	-25...60 °C
Temperature range, stationary	-50...80 °C
Torsion resistance	180 °/m
General technical data	{'Coding': 'A-coded', 'Connection thread': 'M12', 'Contact surface': 'Gold-plated', 'Housing main material': 'PUR', 'Insulation resistance': '10^8 Ω', 'jumpered': 'No', 'LED': 'No', 'Nominal current': '4 A', 'Nominal voltage': '60 V', 'Plugging cycles': '≥ 100', 'Pollution severity': '3', 'Protection degree': 'IP65, IP66, IP67, IP68, IP69', 'Temperature range of housing': '-25…+85 °C', 'Threaded ring material': 'Diecast zinc', 'Tightening torque': 'M12: 0.8 - 1.2 Nm', 'Version': 'pin, straight'}
Standards	{'Certificate no. (cULus)': 'E307231', 'Connector standard': 'IEC 61076-2-101'}
Classifications	{'ETIM 6.0': 'EC001855', 'ECLASS 9.0': '27-06-03-11', 'ECLASS 10.0': '27-06-03-11'}
