Description:

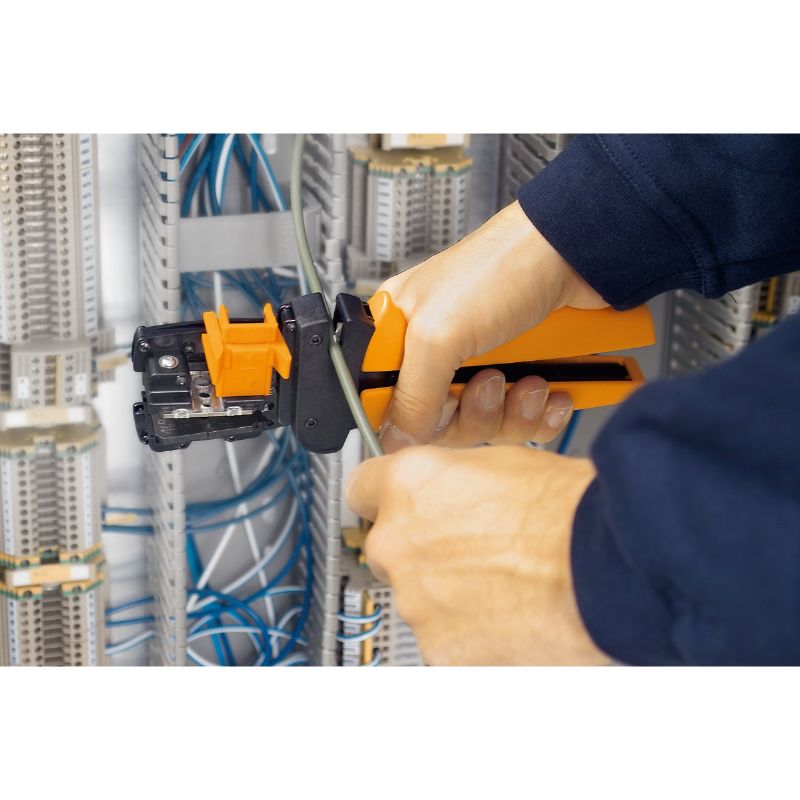

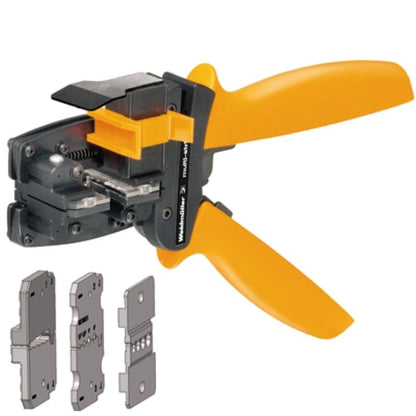

Introducing the MULTI-STRIPAX 15-60S, a specialized tool expertly crafted for stripping and cutting VDE cables with PVC insulation This versatile tool accommodates conductor cross-sections from 15 mm² to 60 mm² and is effective for both solid and flexible wires With an emphasis on precision, it ensures optimal cutting capabilities for different cable varieties Moreover, it meets stringent environmental standards such as RoHS and REACH, guaranteeing a safe and compliant choice for your electrical projects.
Features and Benefits:
•Stripping and cutting tool dedicated to VDE cables with PVC insulation.
•Compatible with flexible and solid conductors.
•Provides detailed cutting capacity for both fine-strand and solid conductors.
•Complies with RoHS and REACH standards.
Specifications:
| Depth | 40 mm |
| Height | 85 mm |
| Width | 250 mm |
| Net weight | 555 g |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 1.5 mm² |
| max. cutting capacity, fine-strand | 6 mm² |
| max. cutting capacity, ribbon | 10.2 mm x 4 mm |
| max. cutting capacity, solid | 2.5 mm² |
| Stripping length, min. | 2 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 14 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
