Description:

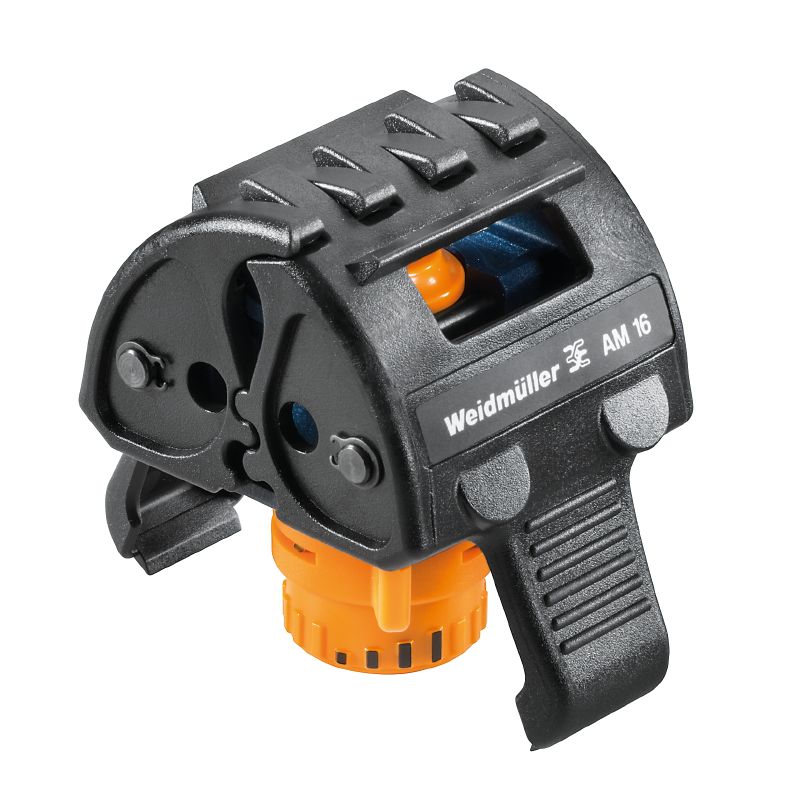

Introducing the AM 16, an expertly engineered tool for precise round cable stripping This versatile device can handle conductor cross-sections ranging from 20 mm² to a robust 227 mm² With adjustable cutting depths between 08 mm and 25 mm, it accommodates a maximum conductor diameter of 17 mm and a minimum of 5 mm Count on these strippers for dependable performance across various cable types, making your tasks easier and more efficient.
Specifications:
| Depth: | 41 mm |
| Depth (inches): | 1.614 inch |
| Height: | 53 mm |
| Height (inches): | 2.087 inch |
| Width: | 58 mm |
| Width (inches): | 2.283 inch |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| Cable type: | Round cable |
| Conductor cross-section, max.: | 227 mm² |
| Conductor cross-section, min.: | 20 mm² |
| Cut depth: | 0.8 - 2.5 mm |
| Max. conductor diameter: | 17 mm |
| Min. conductor diameter: | 5 mm |
| ETIM 6.0: | EC000163 |
| ETIM 7.0: | EC000163 |
| ETIM 8.0: | EC000163 |
| ETIM 9.0: | EC000163 |
| ETIM 10.0: | EC000163 |
| ECLASS 9.0: | 21-04-90-90 |
| ECLASS 9.1: | 21-04-37-06 |
| ECLASS 10.0: | 21-04-90-90 |
| ECLASS 11.0: | 21-04-90-90 |
| ECLASS 12.0: | 21-04-90-90 |
| ECLASS 13.0: | 21-04-90-90 |
| ECLASS 14.0: | 21-04-90-90 |
| ECLASS 15.0: | 21-04-90-90 |
