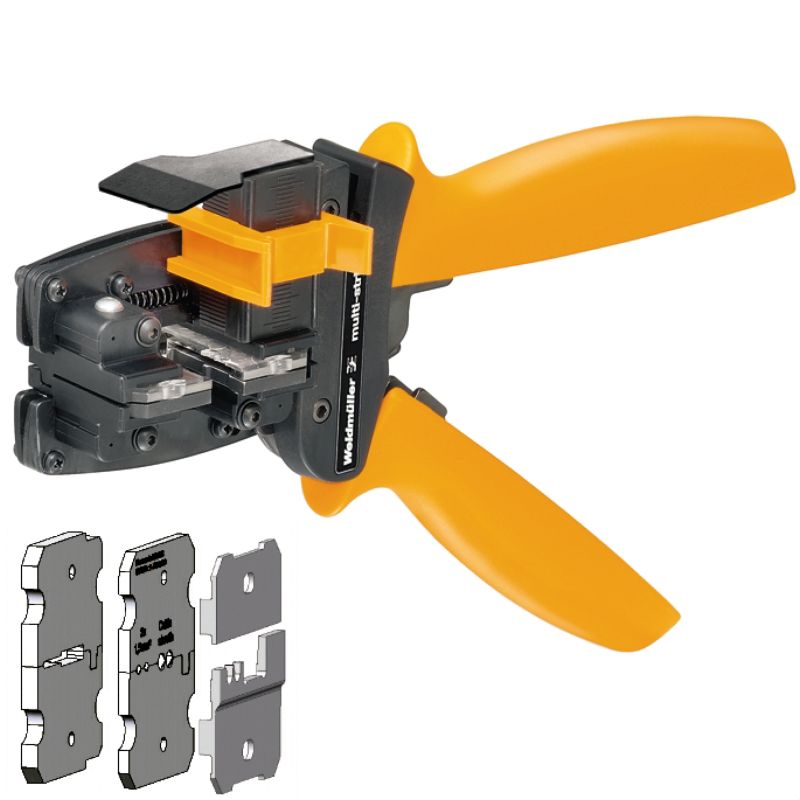

9202250000 - Versatile ASI Cable Stripper and Cutter Tool
9202250000 - Versatile ASI Cable Stripper and Cutter Tool
SKU: SKU: 9202250000 Download PDF
- 9202250000 - Versatile ASI Cable Stripper and Cutter Tool
- 9202250000 - Versatile ASI Cable Stripper and Cutter Tool
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

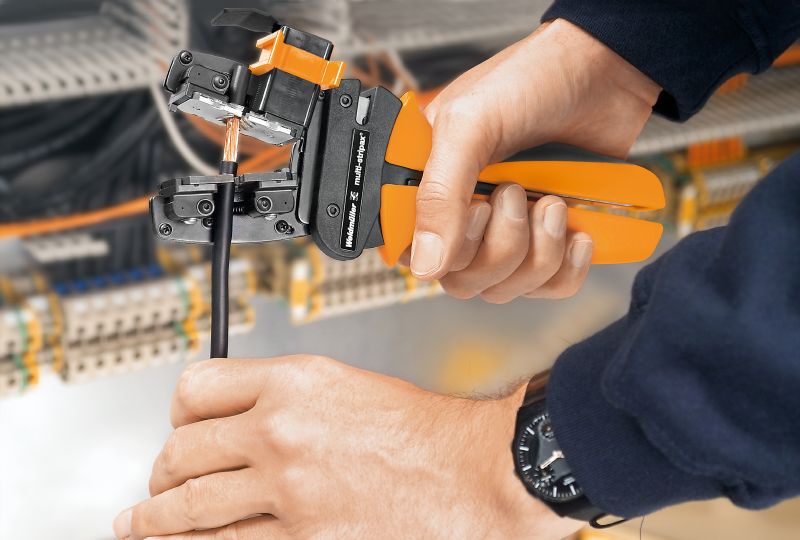

Introducing the MULTI-STRIPAX ASI, an essential tool for efficiently stripping and cutting ASI cables This versatile device is tailored to handle a range of conductors and cutting requirements, making it a reliable choice for various electrical tasks Its multifunctional design ensures optimal performance, catering to both professionals and DIY enthusiasts alike.
Features and Benefits:
•Not affected by RoHS compliance.
•Supports multiple stripping ranges from 2 mm to 6 mm.
•Capable of cutting flexible copper cables and solid conductors.
•Stripping and cutting ASI cables.
Specifications:
| Depth | 40 mm |
| Height | 85 mm |
| Width | 250 mm |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max. | 1.5 mm² |
| max. cutting capacity, fine-strand | 6 mm² |
| max. cutting capacity, ribbon | 10.2 mm x 4 mm |
| max. cutting capacity, solid | 2.5 mm² |
| Stripping length, min. | 2 mm |
| Stripping range AWG, max. | 8 AWG |
| Stripping range AWG, min. | 16 AWG |
| GTIN (EAN) | 4032248486199 |
