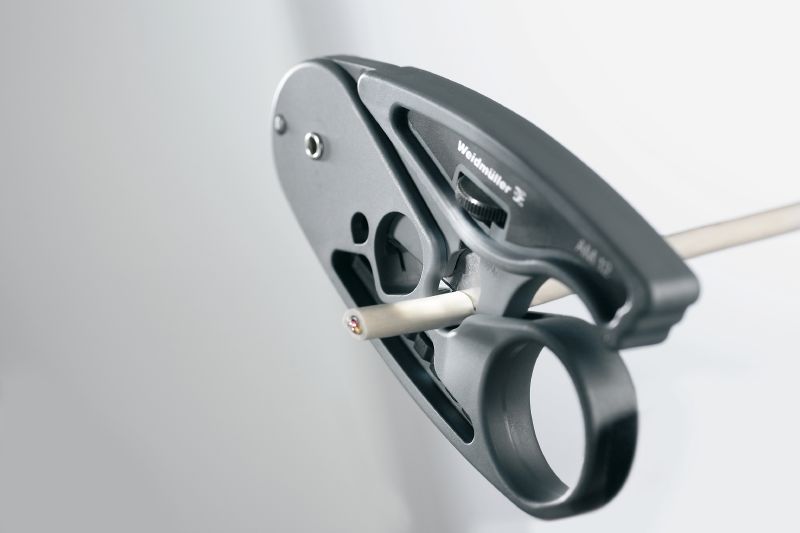

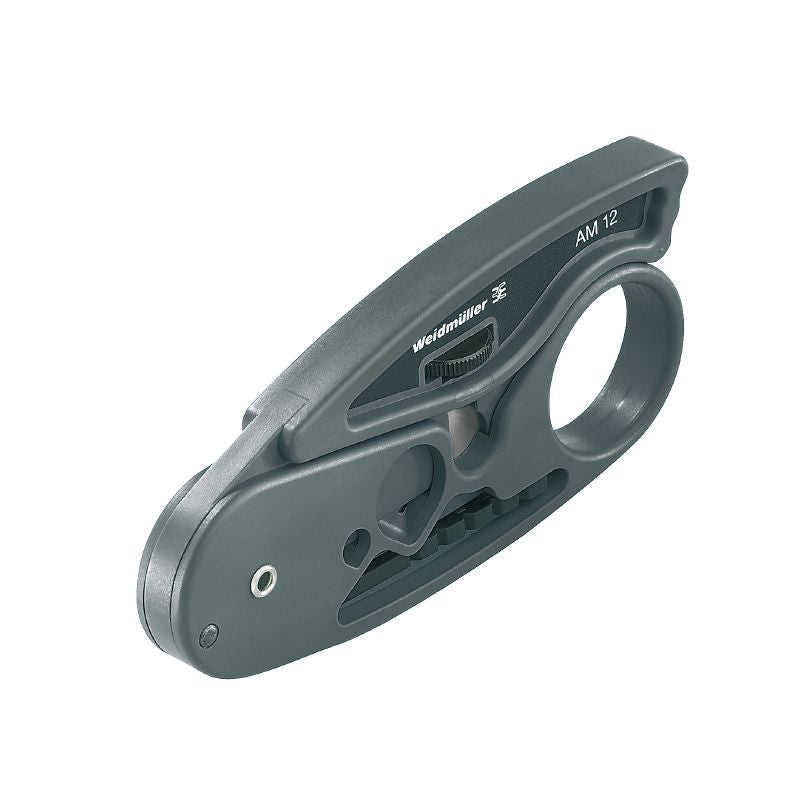

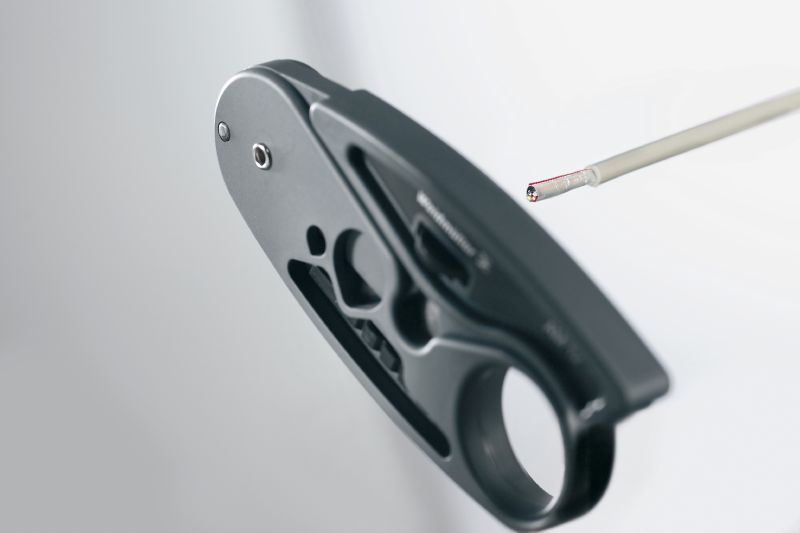

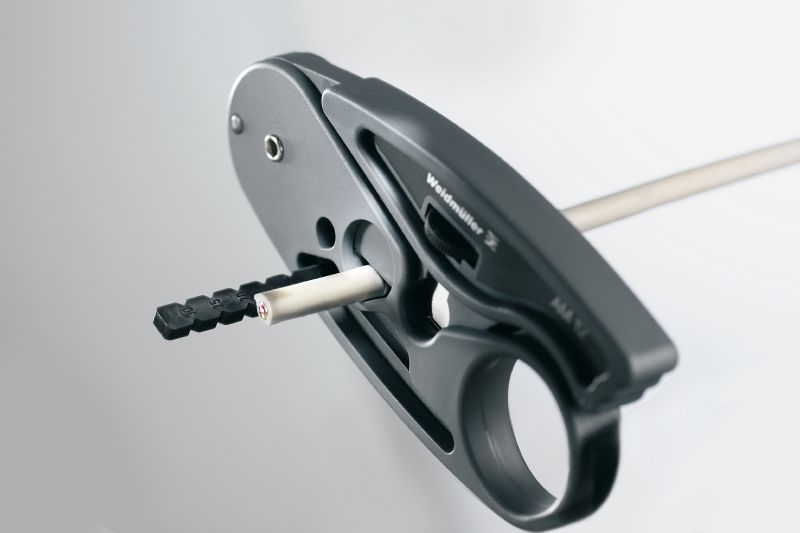

9030060000 - Adjustable Sheathing Stripper for UTP/STP Cables, 0.5-12.5mm
9030060000 - Adjustable Sheathing Stripper for UTP/STP Cables, 0.5-12.5mm
SKU: SKU: 9030060000 Download PDF
- 9030060000 - Adjustable Sheathing Stripper for UTP/STP Cables, 0.5-12.5mm
- 9030060000 - Adjustable Sheathing Stripper for UTP/STP Cables, 0.5-12.5mm
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Meet the AM 12 sheathing stripper, expertly crafted for use with UTP and STP data cables This essential tool simplifies the stripping process for a variety of conductor sizes, accommodating cables from 02 mm² to 122 mm² Featuring an adjustable cutting depth, it ensures accuracy for cable diameters between 05 mm and 125 mm It also supports AWG sizes from 11 to 18, making it a versatile choice for diverse cabling needs.
In addition, it adheres to environmental regulations, including RoHS compliance.
Features and Benefits:
•Adjustable cut depth for customized stripping depth.
•Designed for UTP and STP data cables.
•Handles a broad range of conductor cross-sections from 0.2 mm² to 122 mm².
•Stripping sheathing from UTP and STP data cables.
Specifications:
| Depth: | 10 mm |
| Height: | 46 mm |
| Width: | 97 mm |
| Net weight: | 32.42 g |
| Copper cable - flexible, max: | 4 mm² |
| Max. conductor diameter: | 12.5 mm |
| Min. conductor diameter: | 0.5 mm |
| Conductor cross-section, max: | 122 mm² |
| Conductor cross-section, min: | 0.2 mm² |
| Stripping range AWG, max: | 11 AWG |
| Stripping range AWG, min: | 18 AWG |
| UTP und STP data cables, max. diameter: | 8 mm |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
