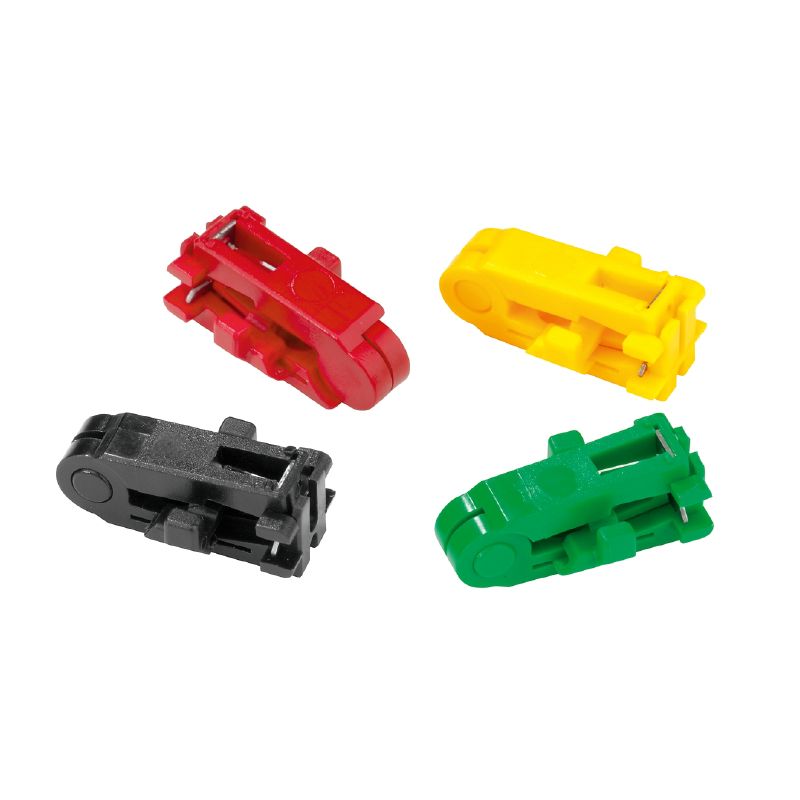

9006970000 - Mini-Duro-Stripax Blade Set for 1mm² Cables
9006970000 - Mini-Duro-Stripax Blade Set for 1mm² Cables
SKU: SKU: 9006970000 Download PDF
- 9006970000 - Mini-Duro-Stripax Blade Set for 1mm² Cables
- 9006970000 - Mini-Duro-Stripax Blade Set for 1mm² Cables
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your cable maintenance with this specialized set of blades crafted for the Mini-Duro-Stripax These blades are engineered to efficiently strip cables with PVC or silicone insulation up to 1mm² Perfectly suited for both solid and flexible conductors, this tool ensures precision and versatility in your wiring tasks.
Features and Benefits:
•Can strip conductors with diameters ranging from 0.3 mm to 1.3 mm.
•Allows for stripping lengths between 3 mm and 7 mm.
•Includes a set of cutters.
Specifications:
| Depth | 16 mm (0.63 inch) |
| Height | 11.5 mm (0.453 inch) |
| Width | 26 mm (1.024 inch) |
| Max. conductor diameter | 1.3 mm |
| Min. conductor diameter | 0.3 mm |
| Stripping length, max. | 7 mm |
| Stripping length, min. | 3 mm |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
