Description:

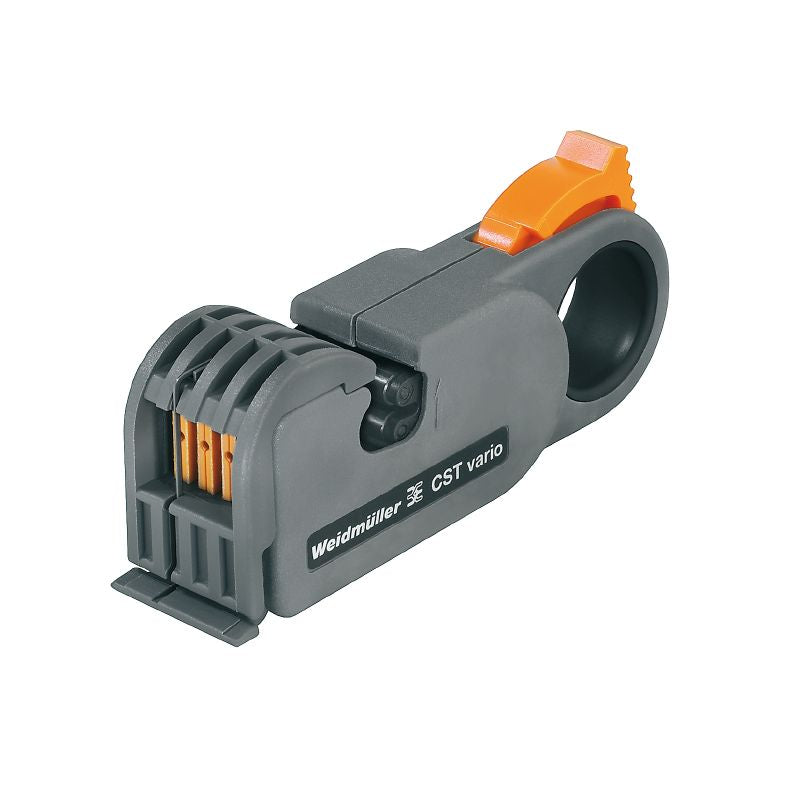

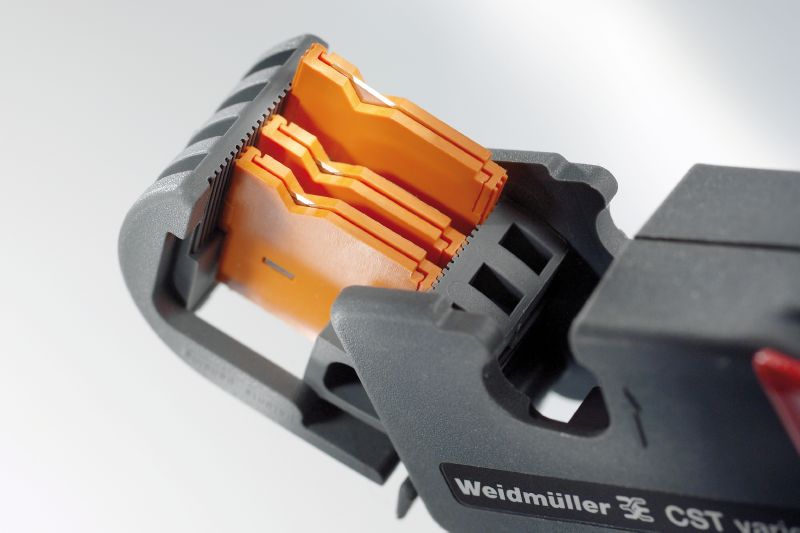

Introducing the CST VARIO, an expertly crafted tool for efficiently stripping sheathing from coaxial cables and round data lines This versatile device is compatible with a variety of cable types, making it ideal for precise handling of both coaxial and round formats.
Features and Benefits:
•Suitable for coaxial and round data cables.
•Max stripping length of 17 mm.
•Min stripping length of 3.2 mm.
•Accommodates conductor diameters from 2.5 mm to 8 mm.
•Handles a conductor cross-section from 5 mm² to 50 mm².
Specifications:
| Depth | 26 mm |
| Height | 45 mm |
| Width | 116 mm |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| Max conductor diameter | 8 mm |
| Min conductor diameter | 2.5 mm |
| Conductor cross-section, max | 50 mm² |
| Conductor cross-section, min | 5 mm² |
| Stripping length, max | 17 mm |
| Stripping length, min | 3.2 mm |
| ETIM 6.0 | EC000163 |
| ETIM 7.0 | EC000163 |
| ETIM 8.0 | EC000163 |
| ETIM 9.0 | EC000163 |
| ETIM 10.0 | EC000163 |
| ECLASS 9.0 | 21-04-90-90 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-90-90 |
| ECLASS 11.0 | 21-04-90-90 |
| ECLASS 12.0 | 21-04-90-90 |
| ECLASS 13.0 | 21-04-90-90 |
| ECLASS 14.0 | 21-04-90-90 |
| ECLASS 15.0 | 21-04-90-90 |
