Description:

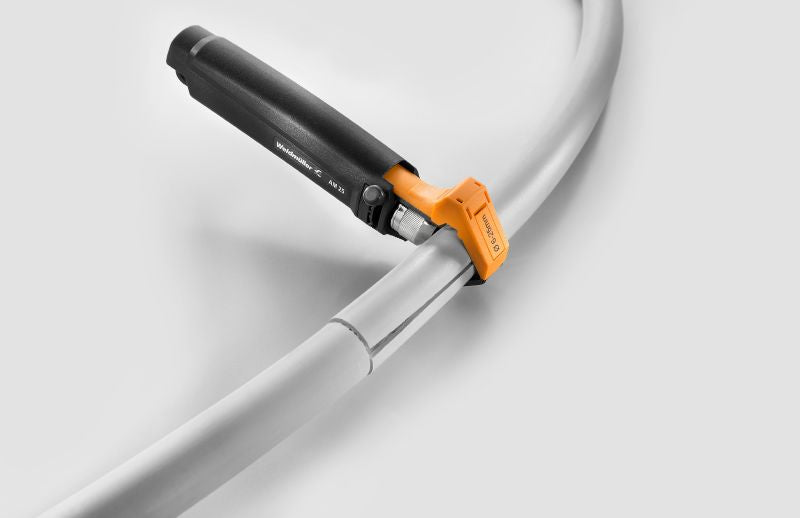

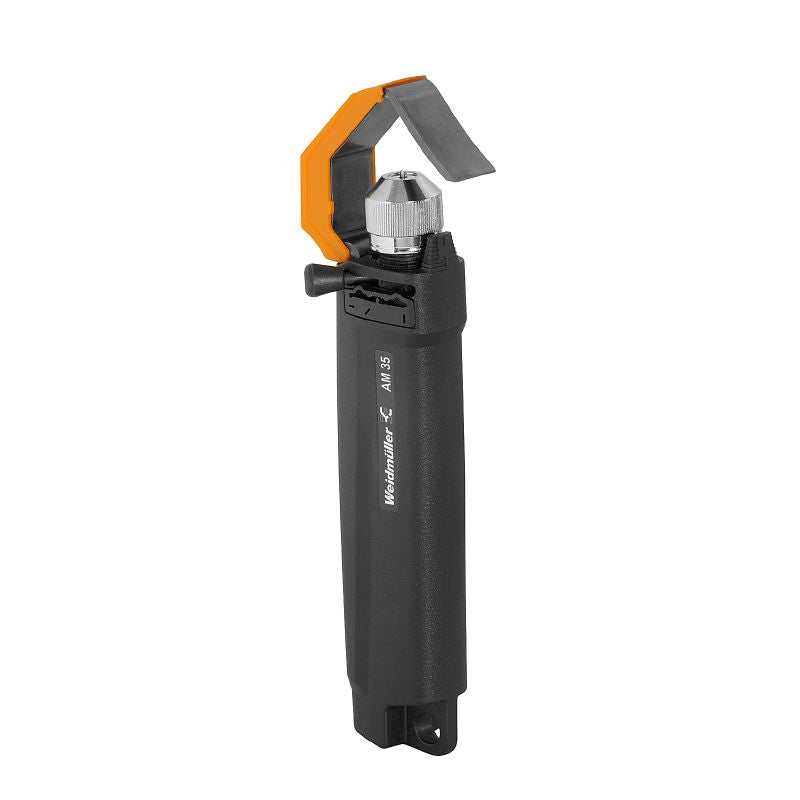

Introducing the AM 35 sheathing stripper, expertly crafted for handling cables with an outer diameter of up to 35mm This versatile tool is ideal for PVC round cables and boasts an adjustable cutting depth of 45mm It supports conductor cross-sections from 490mm² to a maximum of 962mm² The dimensions measure 33mm in depth, 174mm in height, and 53mm in width, with a lightweight design at 12773 grams Additionally, the AM 35 meets RoHS compliance and contains lead as a Substance of Very High Concern (SVHC) per REACH regulations.
Perfect for both professional and DIY applications, this tool guarantees precision and reliability in cable stripping.
Features and Benefits:
•Adjustable cut depth up to 4.5 mm.
•Compatible with PVC round cable.
•Handles a maximum conductor diameter of 35 mm.
Specifications:
| Depth: | 33 mm |
| Height: | 174 mm |
| Width: | 53 mm |
| Net weight: | 127.73 g |
| Max. conductor diameter: | 35 mm |
| Min. conductor diameter: | 25 mm |
| Conductor cross-section, max.: | 962 mm² |
| Conductor cross-section, min.: | 490 mm² |
| RoHS Compliance Status: | Not affected |
| REACH SVHC: | Lead 7439-92-1 |
| Order No.: | 9001080000 |
| GTIN (EAN): | 4008190208011 |
