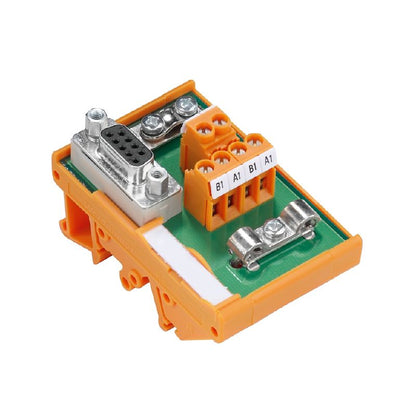

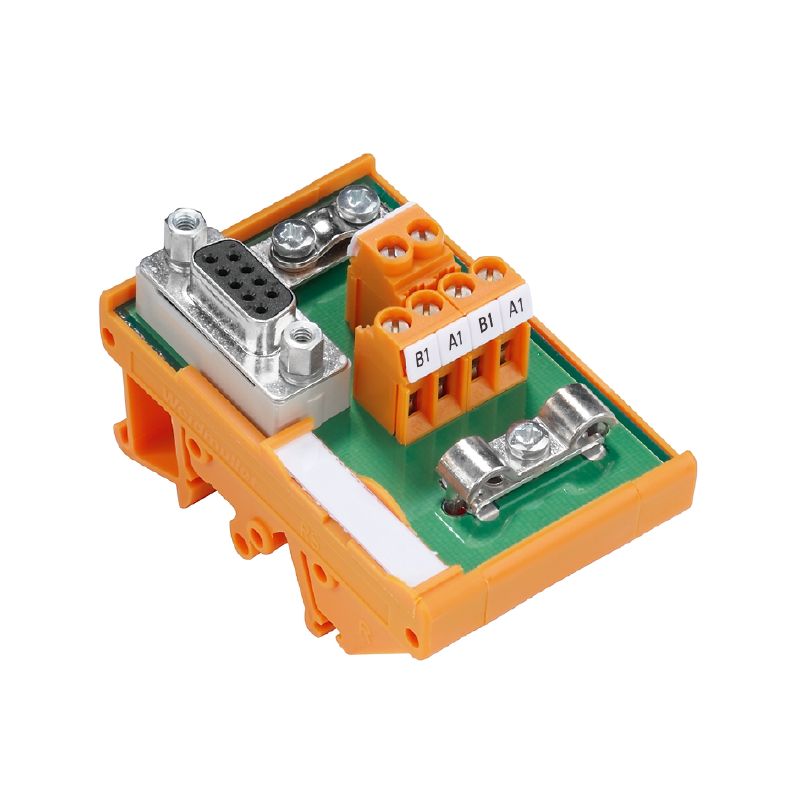

8788580000 - PROFIBUS-DP Connector, IP20, 4.5-8mm Cable Support

8788580000 - PROFIBUS-DP Connector, IP20, 4.5-8mm Cable Support

SKU: SKU: 8788580000 Download PDF

Variant:
  • 8788580000 - PROFIBUS-DP Connector, IP20, 4.5-8mm Cable Support
Regular price Now $21.98
Regular price BEFORE   $0.00 Sale price Now $21.98
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS PB-DP T SUB-D connector, expertly crafted for PROFIBUS-DP applications and rated with an IP20 protection level This connector adheres to RoHS standards, ensuring compliance and safety It accommodates cable diameters ranging from 45 mm to 8 mm and supports conductor cross-sections between 05 mm² up to 25 mm², making it a versatile choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS.

    •Appropriate for PROFIBUS-DP connections.

    •IP20 protection rating.

    •Screw connection type.

Specifications:

 Cable diameter, max. 8 mm
 Cable diameter, min. 4.5 mm
 Conductor cross-section, max. 2.5 mm²
 Conductor cross-section, min. 0.5 mm²
 Connection 1 Profibus-DP T-connector
 Connection 2 Screw
 Protection degree IP20
