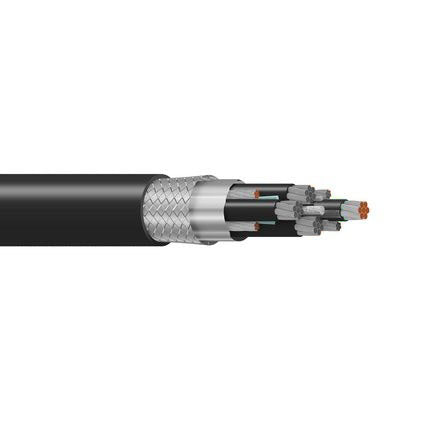

8 AWG 4C + 4#14 AWG Drain Wire VFD Cable 600V/1000V

8 AWG 4C + 4#14 AWG Drain Wire VFD Cable 600V/1000V

SKU: 8-04VFD

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $6.27 /FT   Web pricing policy
BEFORE   $0.00 Now $6.27 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Applications Features Specifications Reviews
Product Information

8 AWG 4C + 4#14 AWG Drain Wire VFD Cable 600V/1000V

Four Conductor Variable Frequency Drive Cable 600V UL Type TC-ER / 1000V UL Type Motor Supply

Conductors: Stranded soft drawn tinned copper conductors.

Drain(s): Stranded soft drawn tinned copper ground(s).

Insulation: Cross-linked polyethylene XLPE insulation.

Shielding: Aluminum polyester & 85% tinned copper braid.

Jacket: Polyvinyl chloride (PVC) jacket that is sunlight, moisture, oil and abrasion resistant, and direct burial rated.

Applications
Four Conductor Variable Frequency Drive Cables are primarily used with VFD’s. The four conductor construction is more effective than the three conductor version to reduce the effects of EMI interference in the event of a component failure. The cable is 600V rated and for use from -40°C to 90°C.
Features
Standards:
UL 1277, Type TC-ER, Type XHHW-2
UL approved as 1000V flexible motor supply cable
CSA FT-4 Vertical tray flame test
CSA AWM I/II A/B singles
C(UL) CIC-TC per CSA standard C22.2 No. 239 & 230
Meets IEEE 1202/UL 1685 70,000 BTU flame test
Meets ICEA T-29-520 210,000 BTU flame test
Suitable for use in Class I Division II hazardous locations
RoHS II & REACH compliant
Specifications
Specification:
Part Number: 8-04VFD
Conductor Size: 8 AWG
Conductor Stranding: 133
Drain Wire(s) Size: 4#14 AWG
Insulation Thickness: 0.045 Inches
Jacket Thickness: 0.060 Inches
Overall Diameter: 0.77 Inches
Weight ( Lbs/MFT ): 692.9 lbs
