8/4 SOOW Black Portable Power Cable 600V Non UL

8/4 SOOW Black Portable Power Cable 600V Non UL

SKU: NES0467X   Download PDF

Select a gauge:
  • 8/4 SOOW Black Portable Power Cable 600V Non UL
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.46 /FT   Web pricing policy
BEFORE   Now $3.46 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

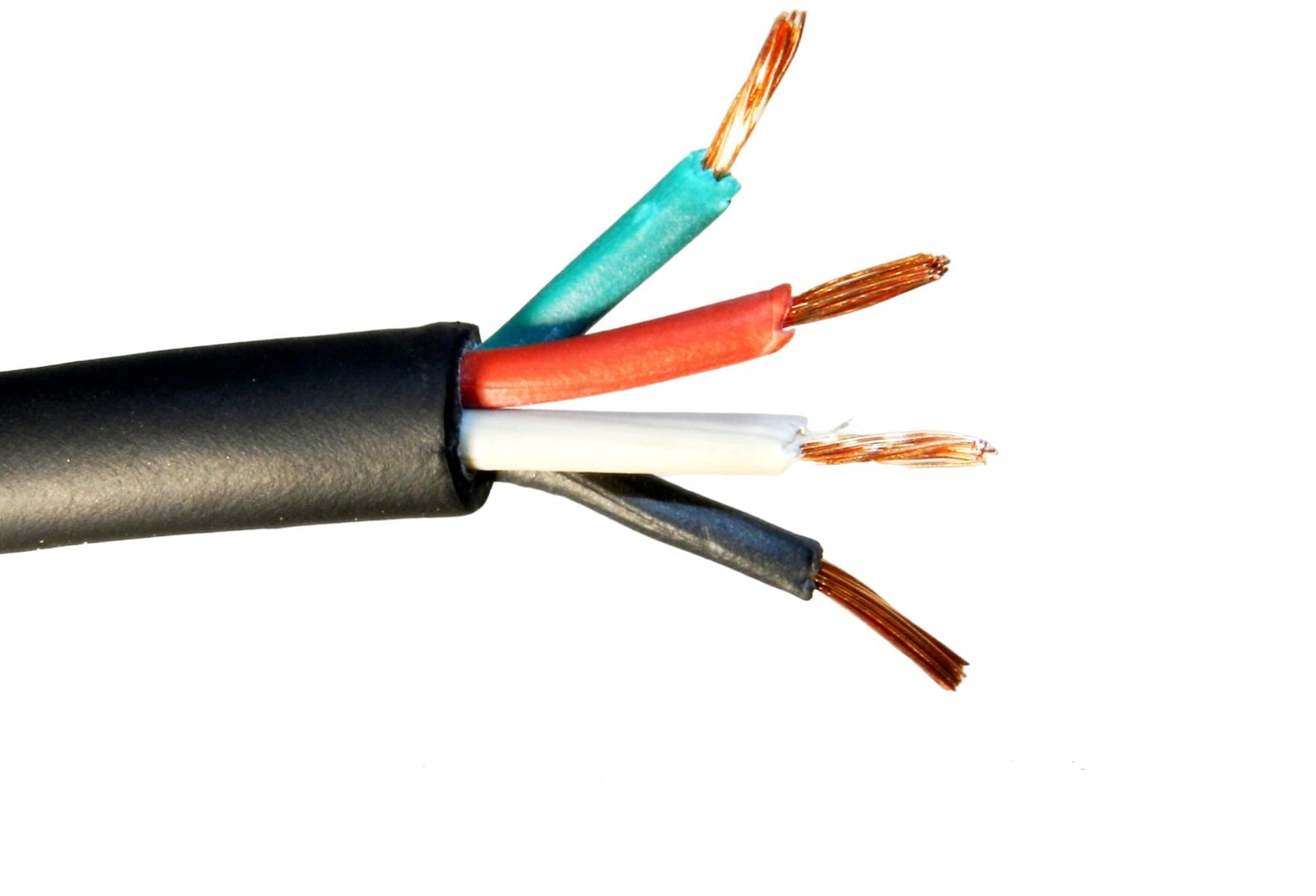

8/4 SOOW Black Portable Power Cable 600V Non UL

Allowable Ampacity For 8/4 SOOW Portable Black Cord-600V Non UL: 35 Amps

Also Known As:

8/4 SOOW Portable Power Cable, 8/4 SOOW, 8/4 SOOW Power Cord, 8/4 SOOW Portable Cord, 8/4 SOOW Service Cord, 8/4 SOOW Service Cable, 8/4 SOOW Cord, 8/4 SOOW Cable, 8/4 SOOW Wire, 8/4 SOOW Flexible Power Cable, 8/4 SO Cord.

Construction:

Conductor:

Stranded, bare, and fully annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions. The gauge is between 18 and 2.

Insulation:

Flexible Ethylene Propylene Diene Monomer EPDM insulation resists fire, abrasion, oil, mechanical impact, sunlight, ozone, air, water, acids, alkalis, and weather.

Jacket:

 Black Chlorinated Polyethylene CPE is a thermoplastic polymer jacket that has superior resistance to chemicals and flames. The jacket is impressively flexible and durable.

Resources

Compatible with Manufacturer
Coleman : Black : 822420
General Cable : Black : 01827.41.01
Omni Cable : Black : B10804
Southwire : Black : 55809399
Wirexpress : Black : 4A-0804
Houston Wire : Black : HW25000804
Priority Wire & Cable : Black : 8-04SOOW
AWC : Black :SOOW 8/4



Applications
SOOW is water and weather-resistant service electrical cable with an oil-resistant jacket and insulation. It is a reputable low-cost portable power electrical cable that offers superior resistance to abrasion. The cable famously stays intact when in contact with a hot surface, making it perfect for tough applications, including compressors, industrial machinery, push-button remotes, industrial control systems, and water purification systems. SO is commonly used in mills, marinas, mines, industrial, commercial and residential facilities. The cable exhibits premium flexibility and is resistant to chemicals, oil, water, sunlight, and air. The voltage rating is set at 600. The temperature range is -40°C to 90°C. SOOW maintains its flexibility in both hot and cold applications.
Features
Standards:
• Flame test meets FT2, and MSHA
• NEC Article 700 permitted use for specific applications
• NFPA 70 permitted use in Hazardous Locations Classes I, II, III, Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 140
Specifications
Size: 8 AWG
No. Of Conductors: 4
Conductor Stranding No./AWG: 67/0.0156
Nominal Insulation Thickness: 0.050 inches
Nominal Jacket Thickness: 0.060 inches
Nominal Overall Diameter: 0.740 inches
Weight lbs/kft: 410 lbs
Ampacity**30°C Ambient: 35
