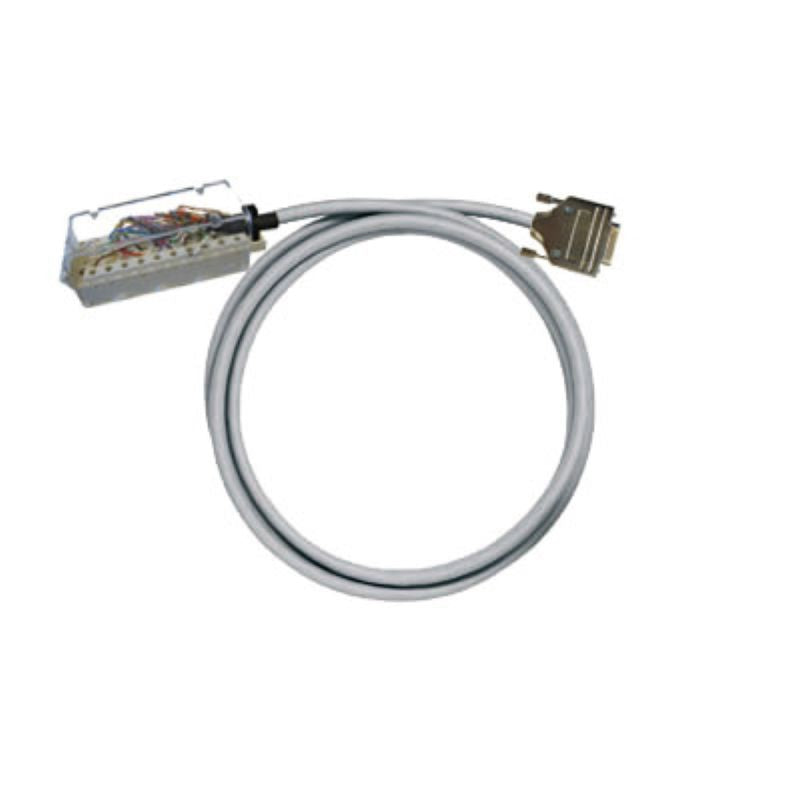

7789847020 - 2m PAC Cable with SUB-D 25-Pole Connector for Analogue Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This pre-assembled PAC cable is engineered for effective transmission of analogue signals It utilizes a LiYCY construction and features a wire cross-section measuring 025 mm² One end is fitted with a SUB-D female 25-pole connector, while the opposite end boasts a SCHNEIDER BMX FTB 2000 20P connector Built to withstand a temperature range of -10 to 50 °C, this cable also meets RoHS compliance and contains no SVHC beyond the specified threshold.

Features and Benefits:

•Net weight is 394 g.

•Outer diameter measures approximately 10.15 ± 1 mm.

•Designed for analogue signals.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage is up to 60 V DC and 25 V AC.

•High voltage testing at 1 KV for 1 second.

•Resistance of the cable is ≤ 80 mΩ/m.

•Total current capacity of up to 3 A.

Specifications:
