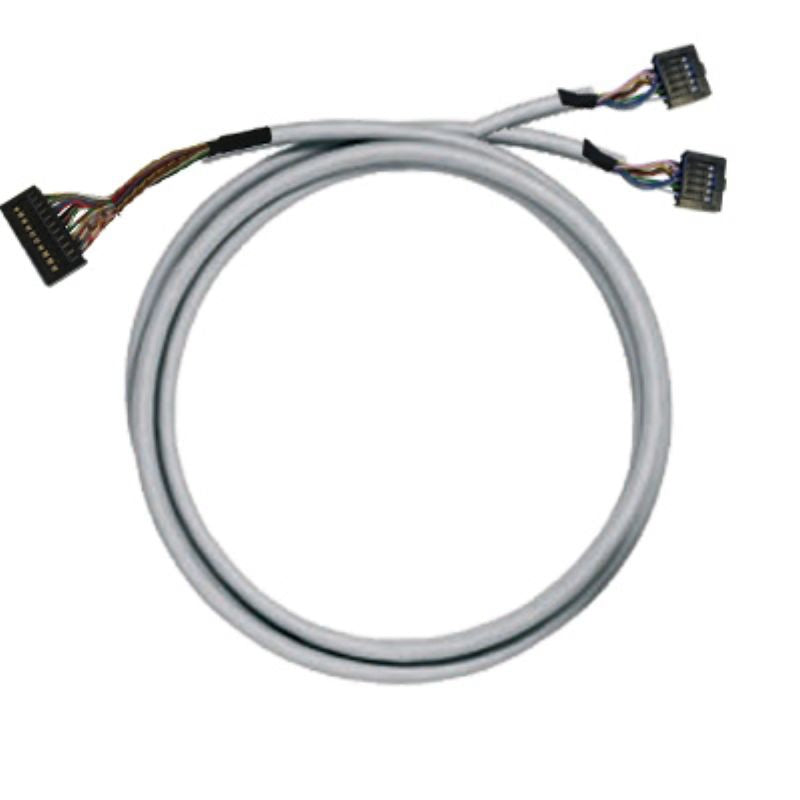

7789810010 - 1m LiYY Pre-assembled PAC Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this pre-assembled PAC cable, crafted from durable LiYY material and designed with a cross-sectional area of 025 mm² Measuring 1 meter in length, this cable is equipped with an HE10 20P connector on one end and two HE10 10P connectors on the opposite end, making it perfect for digital signals and a wide range of applications It conforms to stringent environmental standards, including RoHS, guaranteeing reliable operation within a temperature range of -10°C to 50°C.

Features and Benefits:

•Net weight is 250 g.

•Outer diameter is 8.6 ± 1 mm.

•Permissible current strength per path is max 1 A.

•Rated voltage is less than or equal to 60 V DC and 25 V AC.

•Resistance is less than or equal to 80 mΩ/m.

•Total current capacity is max 3 A.

•The cable is suitable for digital signals..

Specifications:
