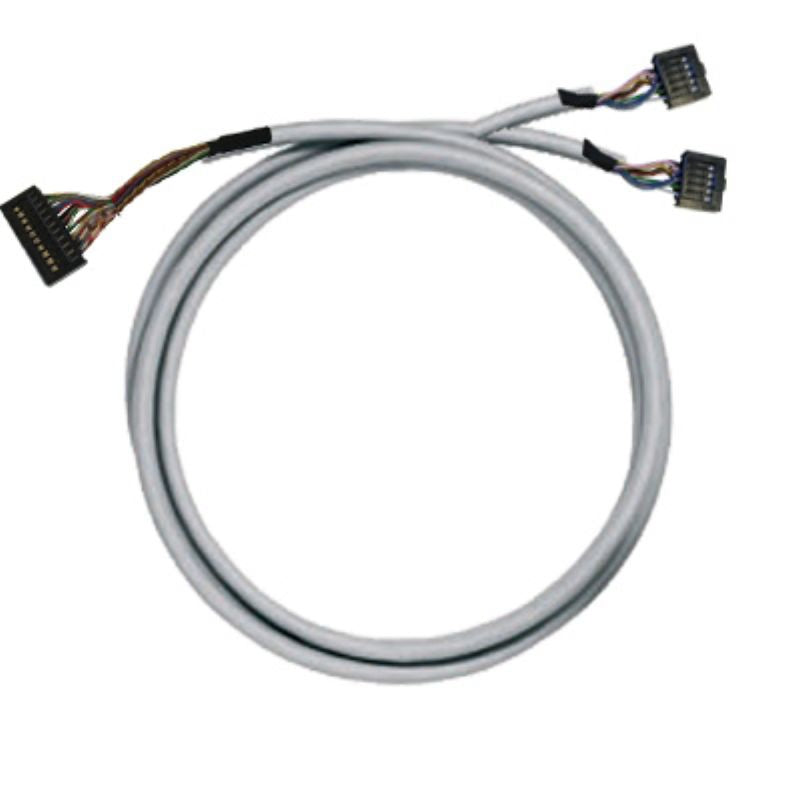

7789807015 - 1.5m Pre-assembled LiYCY Cable with 25-pole Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover our pre-assembled PAC cable, expertly crafted from LiYCY material with a wire cross-section of 025 mm² Complying with RoHS standards, this cable is perfect for transmitting analogue signals It operates efficiently in temperatures between -10 °C and 50 °C and can be stored in conditions ranging from -10 °C to 60 °C Engineered to handle a maximum current strength of 1 A, this cable also undergoes a high voltage test of 1 KV for one second.

With an outer diameter of approximately 1015 mm, it features a 25-pole SUB-D FEMALE connector at one end and a length of 15 meters The total current capacity reaches up to 3 A, with a rated voltage of 60 V DC and 25 V AC Additionally, the cable maintains a resistance of 80 mΩ/m or less, ensuring reliable performance for your connectivity needs.

Features and Benefits:

•Complies with RoHS requirements.

•Designed for use with analogue signals.

•High voltage test capability of 1 KV for 1 second.

•Compact outer diameter of 10.15 ± 1 mm.

•Maximum current strength of 1 A.

Specifications:
