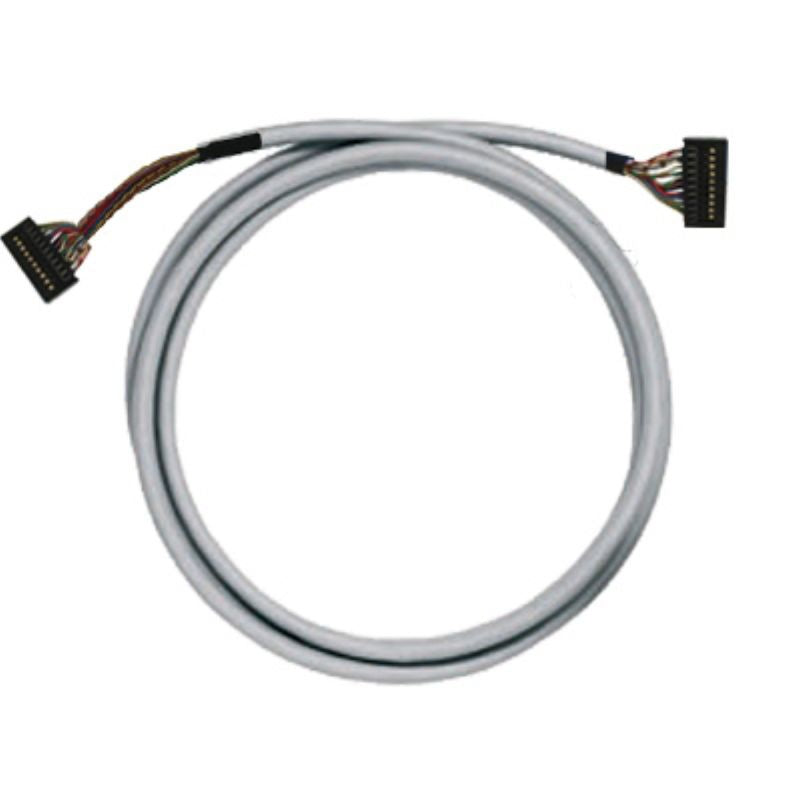

7789806005 - 0.5m LiYY 20-Pole HE10 Pre-Assembled Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a ready-to-use cable featuring the PAC design, crafted from high-quality LiYY material and a cross-section of 025 mm² This versatile cable operates efficiently in temperatures ranging from -10 °C to 50 °C, with storage capabilities extending from -10 °C to 60 °C It is equipped with connectors on both ends, featuring a 20-pole HE10 configuration Additionally, this product meets RoHS requirements and is free from any SVHC in concentrations above 0.

1% by weight.

Features and Benefits:

•Consists of PVC as the basic material.

•Suitable for transmitting digital signals.

•Outer diameter measures 8.6 ± 1 mm.

•Rated for a voltage of ≤ 60 V DC and ≤ 25 V AC.

•Maximum permissible current strength of 1 A per path.

•Total current capacity of up to 3 A.

•Resistance level of ≤ 80 mΩ/m.

Specifications:
