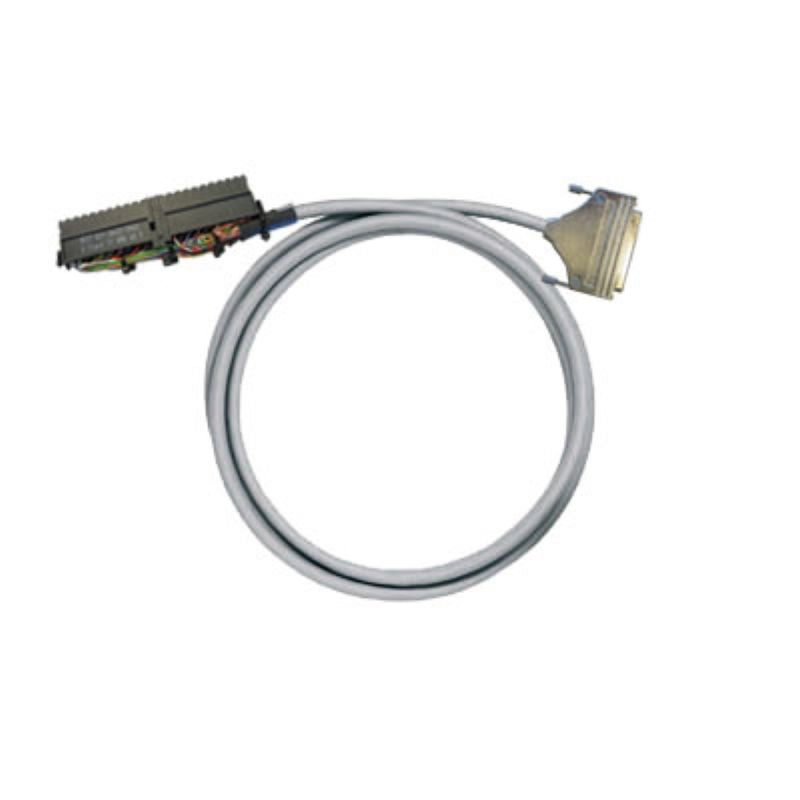

7789781020 - 2m Pre-assembled 0.25 mm² Cable for Analogue Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a pre-assembled PAC cable, expertly crafted for effective analogue signal transmission With a wire cross-section of 025 mm² and an outer diameter of about 122 mm, this cable is versatile for a range of applications It supports a maximum current of 1 A per path, with an overall current capacity of 3 A Designed for safety and efficiency, it functions effectively at a rated voltage of up to 60 Vdc and 25 Vac.

Perfect for your technical needs, this cable is ready to deliver reliable performance.

Features and Benefits:

•Cable LiYCY design.

•RoHS compliant.

•Operating temperature range from -10 to 50 °C.

•Storage temperature range from -10 to 60 °C.

•Electrical capacity of 300 pF/m for wire and shield and for wires.

•High voltage test capability of 1 KV for 1 second.

•Resistance of less than 80 mΩ/m.

•Designed for analogue signal transmission.

Specifications:
