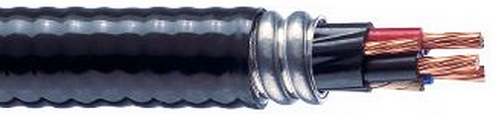

  • 6/4 TECK90 CANADIAN COPPER BUILDING WIRE 1kV
1 1

6/4 Teck 90 Bare Copper Aluminum Interlocked Armored Cable With Ground 1KV

6/4 Teck 90 Bare Copper Aluminum Interlocked Armored Cable With Ground 1KV

SKU: NES3995X   Download PDF

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $9.62 /FT   Web pricing policy
BEFORE   $0.00 Now $9.62 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

6/4 Teck 90 Bare Copper Aluminum Interlocked Armored Cable With Ground 1KV

Also Known As:

6/4 AWG Teck 90 cable ,1KV armored cable, 6/4 AWG Bare copper interlocked cable, Aluminum armored cable, Teck 90 1KV rating, 6/4 AWG Interlocked armored cable, Bare copper aluminum cable, 6/4 AWG Armored electrical cable.

Construction:

• Conductor: Class B stranded copper, compressed or compact, in accordance with ASTM B3 and B8.
• Insulation: Cross-Linked Polyethylene (XLPE), Colour Code: 2/C black, white; 3/C red, black, blue; 4/C red, black, blue, white For cables larger than No. 2 AWG or more than 4/C, the insulation is black and numbered
• Grounding Conductors: Uninsulated Class B stranded grounding conductor
• Inner Jacket: Black Polyvinyl Chloride (PVC)
• Armor: Aluminum Interlocked Armour (AIA)
• Overall Jacket: Black PVC (optional colours available)

Resources


Applications
For exposed or concealed wiring in wet or dry locations. For use in ventilated, non ventilated and ladder type cable troughs and ventilated flexible cableway in wet, dry, or hazardous locations. Sunlight Resistant. Typical applications are for control. lighting and power circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants. Rated for 1000 lbs./FT maximum sidewall pressure.
Features
Standards:
• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• CSA C22.2 No. 174 Cables in Hazardous Locations
• CSA C22.2 No. 131 Type TECK 90 Cable
• CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
• CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
• CSA HL - for Hazardous Locations rating
• CSA SUN RES - for Sunlight Resistant rating
• CSA AG14 - Acid Gas Compliance
• IEEE 383 Flame Test (70,000 btu)
• IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
Specifications
Specifications:

• Size: 6 AWG
• No of conductor: 4
• No of Strands: 7
• Insulation thickness ( mil ): 60
• Ground No x AWG: 1 x 8
• Inner Jacket thickness ( mil ): 85
• Dia. Over Armour ( Inch ): 1.216
• Overall Jacket thickness ( mil ): 45
• Approx. OD ( Inch ): 1.306
• Approx. Weight (lb/1000ft): 889
• Allowable Ampacity In Raceway 90°C†: 60 Amp
