500 MCM 3C + 3#6 AWG Ground Wire VFD Cable 2KV

500 MCM 3C + 3#6 AWG Ground Wire VFD Cable 2KV

SKU: 500-03VFD-3G-2KV

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $69.78 /FT   Web pricing policy
BEFORE   Now $69.78 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Applications Features Specifications Reviews
Product Information

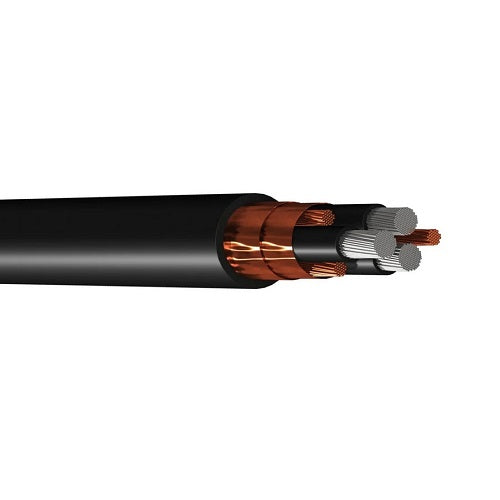

500 MCM 3C + 3#6 AWG Ground Wire VFD Cable 2KV

Three Conductor Variable Frequency Drive Cable 2000V UL Type TC-ER

Conductors:

Fully annealed bare copper Class B compressed strand per ASTM B-8

Ground(S):

3 symmetrically placed annealed bare copper conductors in direct contact with shield. Class B stranding per ASTM B-8

Insulation:

Heat and moisture resistant, chemically cross-linked polyethylene (XLPE) insulation

Shielding:

Overall 5 mil annealed bare copper tape shield, helically applied with 50% overlap and 100% coverage

Jacket:

• Lead-free, flame-retardant polyvinyl chloride (PVC) jacket that is sunlight, weather, chemical and abrasion resistant
• Meets cold bend test at -25°C and crush and impact requirements for Type MC Cable

Applications
Three Conductor Variable Frequency Drive 2000V Cables are primarily used with AC motors controlled by pulse-width modulated inverter in VFD applications rated up to 2000 Volts. Suitable for installation in cable trays, raceways, or direct burial. They also may be installed in wet or dry locations and are permitted for use in Class I - Div 2, Class II - Div 2, and Class III - Div 1 and 2 industrial hazardous locations.
Features
Standards:
• UL Listed as TC-ER (Exposed Run) per UL Standard 1277 as defined by NEC for 3 or more conductors
• UL Type RHH or RHW-2 conductors per UL 44
• Flame Rated: IEEE (70,000 BTU), IEEE 1202/CSA FT-4, ICEA T-29-520 (210,000 BTU, 1/0 AWG and larger), Twohour Firewall
• Rated 90°C wet or dry
• Direct Burial
• Approved for Class 1 and 2, Division 2 and Class 3, Divison
1 and 2 industrial hazardous locations per NEC
• REACH Compliant
Specifications
Specification:
Part Number: 500-03VFD-3G-2KV
Conductor Size: 500 MCM
Conductor Stranding: 37W
Ground Wire(s) Size: 3#6 AWG
Insulation Thickness: 0.11 Inches
Jacket Thickness: 0.11 Inches
Overall Diameter: 2.40 Inches
Weight: 6474 lbs/mft
Ampacity: 430 amps
