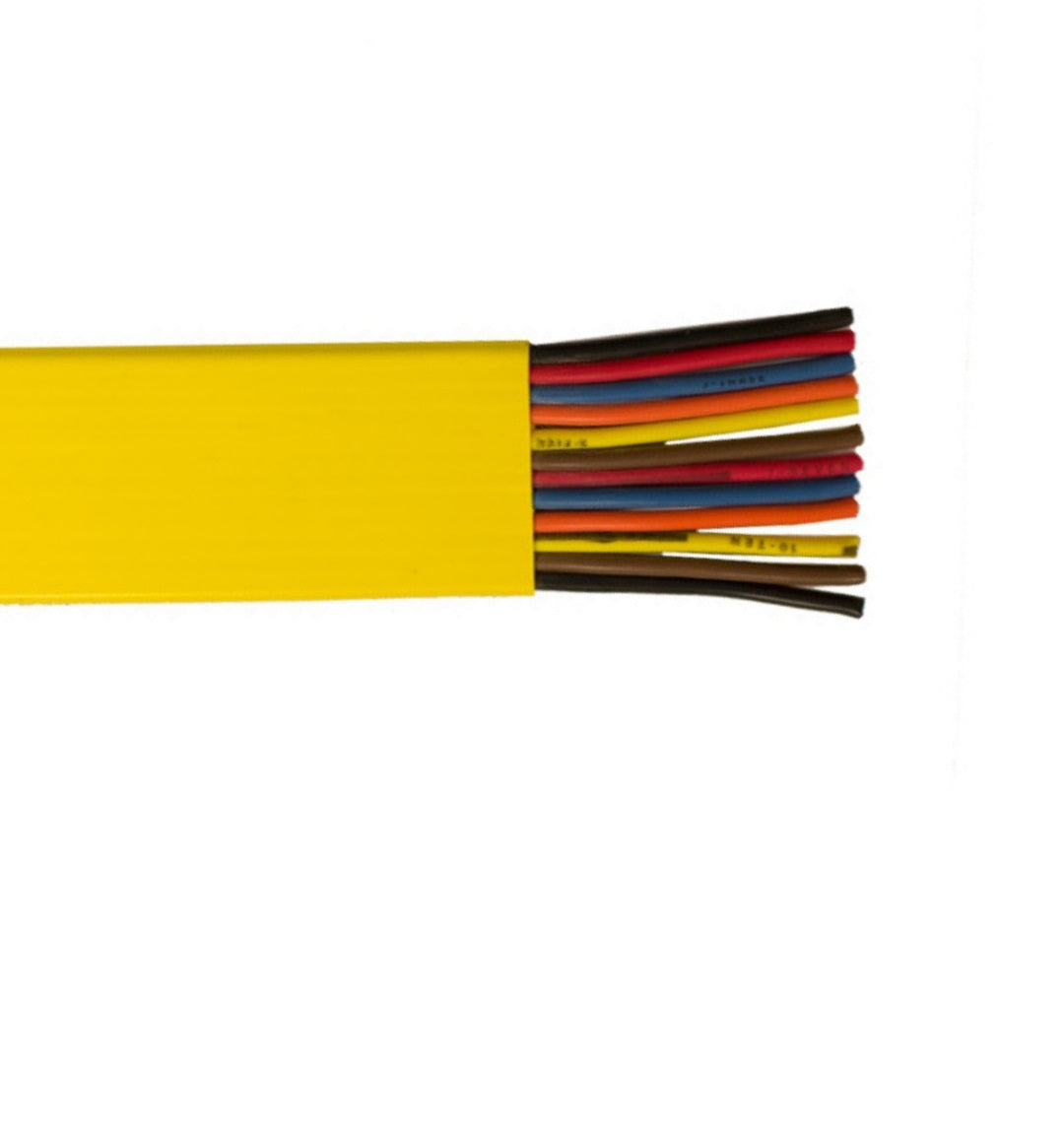

500' 16 AWG 8C Flat Festoon Shielded Polyvinyl Chloride 600V Yellow Cable

500' 16 AWG 8C Flat Festoon Shielded Polyvinyl Chloride 600V Yellow Cable

SKU: NES18144X-500 Download PDF

Now $2,070.00
BEFORE   Now $2,070.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

16 AWG 8C Flat Festoon Shielded Wire, 16 AWG 8C FFC Shielded Cable,16 AWG 8C Flat Portable Shielded Cord, 16 AWG 8C Festoon System Cable, 16 AWG 8C Festoon Cable, 16 AWG 8C Crane Festoon Cable, 16 AWG 8C Festoon Wiring, 16 AWG 8C Festoon Rail Cable, 16 AWG 8C Festoon System Cable, 16 AWG 8C C-Track Cable Festoon.

Conductor:

Stranded Bare Copper

Shield:

Braided Shield

Insulation/ Jacket:

PVC - Polyvinyl Chloride insulation is durable and resistant to sunlight, chemicals, and water.

Resources
Applications
Flat Festoon Cable (PVC) is designed for continuous flexing applications, including festooning systems, cranes, hoists, track systems, conveyors & robotic systems where extreme flexing is required. The electrical cable is flexible and has a small bending radius, which makes it perfect for applications where the space is severely limited. The temperature range is -40°C-105°C. FFC electrical cable is rated at 600V.
Features
Standards:
UL VW-1
CSA FT1
UL/CSA Certified for indoor and outdoor use.
Specifications
AWG Size: 16
Number of Conductors: 8
Conductor Strand: 65/34
Insulation Thickness: 0.031 inches
Outside Diameter: 0.270 x 1.455 Inches
Weight: 0.320 lbs per ft
Voltage: 600V
