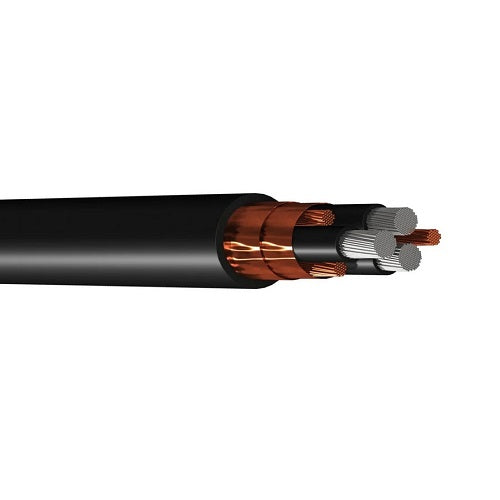

4/0 AWG 3C + 3#2 AWG Ground Wire VFD Cable 600V/1000V

4/0 AWG 3C + 3#2 AWG Ground Wire VFD Cable 600V/1000V

SKU: 4/0-03VFD-3G

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $46.78 /FT   Web pricing policy
BEFORE   $0.00 Now $46.78 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Applications Features Specifications Reviews
Product Information

4/0 AWG 3C + 3#20 AWG Ground Wire VFD Cable 600V/1000V

Three Conductor Variable Frequency Drive Cable 600V UL Type TC-ER / 1000V UL Type Motor Supply

Conductors:

• 16AWG-4AWG: Stranded soft drawn tinned copper
• 2AWG and larger: Stranded soft drawn bare copper

Ground(S):

• 16AWG-4AWG: Stranded soft drawn tinned copper
• 2AWG and larger: Stranded soft drawn bare copper

 Insulation:

• Cross-linked polyethylene (XLP) insulation

Shielding:

• 16AWG-4AWG: Aluminum/Mylar/Aluminum tape 100%
coverage & tinned copper braid
• 2AWG and larger: 0.005” helical bare copper tape shield with a
50% overlap

Jacket:

• Black polyvinyl chloride (PVC) jacket that is sunlight,
moisture, oil and abrasion resistant, and direct burial rated.
• Rated for use from -40°C to 90°C

Applications
Three Conductor Variable Frequency Drive Cables are primarily used with VFD’s. The three conductor construction is suitable for applications that are generally dry with one-phase fault conditions, where an insulated ground is not required.
Features
Standards:
• UL 1277, Type TC-ER, Type XHHW-2
• UL approved as 1000V flexible motor supply cable
• UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
• CSA FT-4 Vertical tray flame test
• CSA AWM I/II A/B singles
• CSA Type AWM per CSA standard C22.2 No. 210-11
• c(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 230-09
• Meets UL 1202/1583 70,000 BTU flame test
• Meets ICEA T-29-520 210,000 BTU flame test
• Suitable for use in Class I Division II hazardous locations
• 90°C DRY/WET
• RoHS II & REACH compliant
Specifications
Specification:

Part Number: 4/0-03VFD-3G
Conductor Size: 4/0 AWG
Conductor Stranding: 133
Ground Wire(s) Size: 3#2 AWG
Insulation Thickness: 0.055 Inches
Jacket Thickness: 0.110 Inches
Overall Diameter: 1.732 Inches
Weight ( Lbs/MFT ) :  3750 lbs
