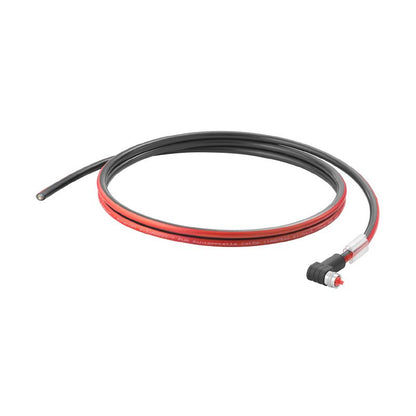

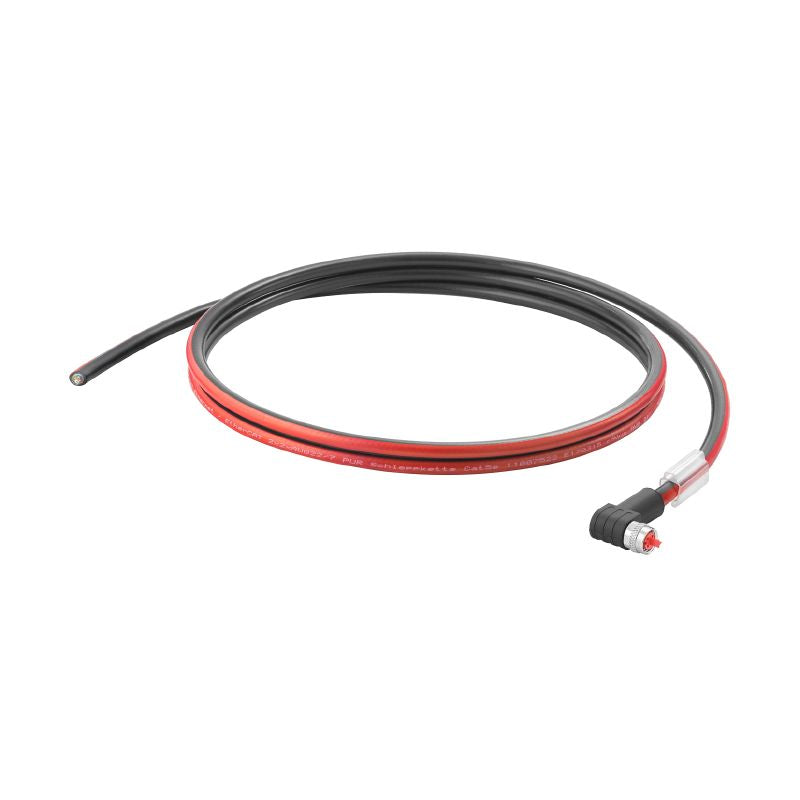

2717760015 - 1.5m IP67 M8 Dragline Cable with Angled Socket

2717760015 - 1.5m IP67 M8 Dragline Cable with Angled Socket

SKU: 2717760015 Download PDF

Variant:
  • 2717760015 - 1.5m IP67 M8 Dragline Cable with Angled Socket
Now $38.32
BEFORE   $0.00 Now $38.32
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M8 P-coded dragline cable, specially designed with an angled socket for optimal performance in environments that demand IP67 protection Crafted from robust PUR material, this cable meets Cat 5e standards and ensures reliable connectivity With a length of 15 meters, it is also compliant with RoHS regulations, making it a safe and effective choice for your needs.

Features and Benefits:

    •Halogen-free according to IEC 60754.

    •Resistance to oils in accordance with IEC 60811:404.

    •Shielded for enhanced protection.

    •Suitable for bending cycles up to 2 million.

Specifications:

 Length: 1.5 m
 Bending cycles: 2 Mio
 Operating temperature: -40 °C to 80 °C
 Number of poles: 4
 Number of wires: 4
 Sheath material: PUR
 Protection degree: IP67
 Test voltage: wire-wire-shield: 1 kV DC, 1 min
 Resistance to spread of flame: Yes
 Temperature range, moving: -30 to 70 °C
 Temperature range, stationary: -40 to 80 °C
