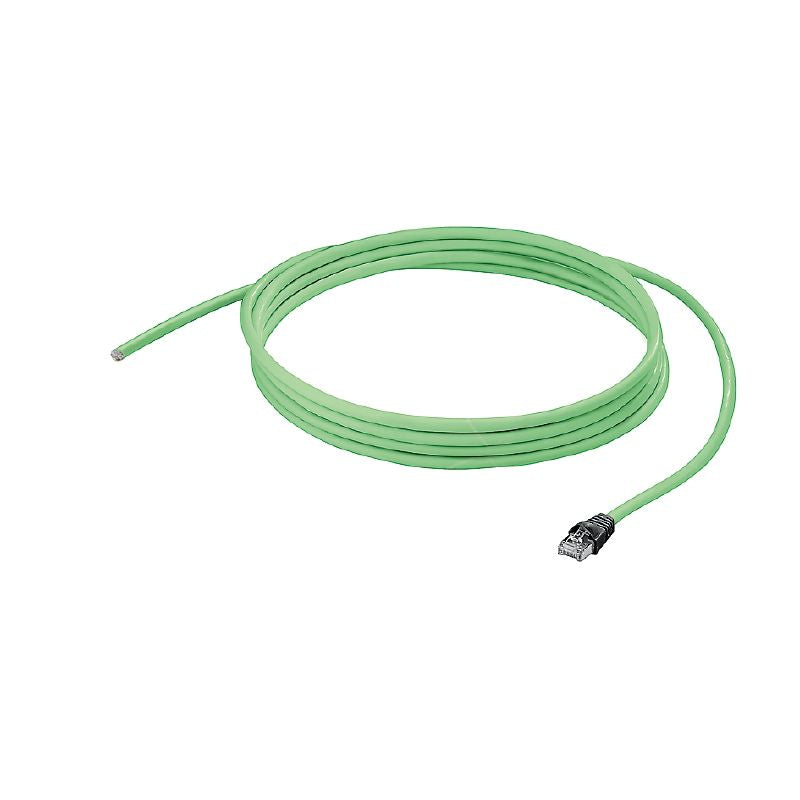

2585370015 - 1.5m PUR Dragline Cable for PROFINET, Cat.5, IP 20

2585370015 - 1.5m PUR Dragline Cable for PROFINET, Cat.5, IP 20

SKU: 2585370015 Download PDF

Variant:
  • 2585370015 - 1.5m PUR Dragline Cable for PROFINET, Cat.5, IP 20
Now $21.38
BEFORE   $0.00 Now $21.38
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a specialized dragline cable tailored for PROFINET applications Measuring 15 meters in length, this robust cable is compliant with IP 20 standards, ensuring reliable performance It satisfies both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications, making it a versatile choice for your networking needs The durable PUR outer layer adds to its longevity, while the total weight is just 100 grams, making it easy to handle and install.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Halogen-free according to IEC 60754-2.

    •Very good abrasion resistance.

    •UV-resistant.

Specifications:

 Length 1.5 m
 Storage temperature -50 °C...70 °C
 Operating temperature -40 °C...70 °C
 Installation temperature -20 °C...60 °C
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Arrangement of wire cores Star-quad

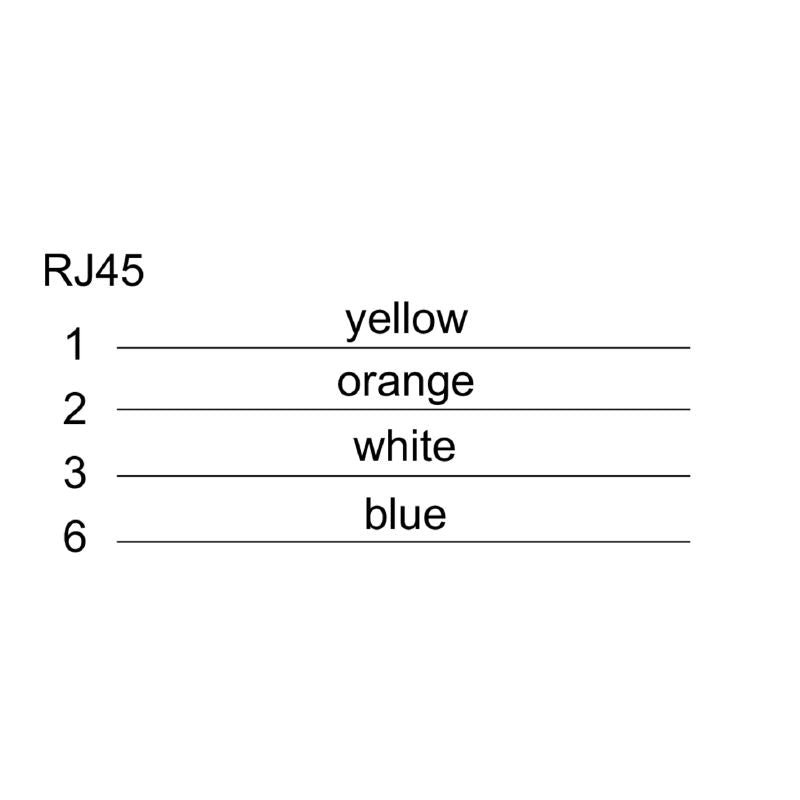

 Wire pairs color sequence white, yellow, blue, orange
 Complete shielding Aluminium foil, Shielding braid made from copper wiring
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Diameter of inner sheathing 3.9 mm
 Filler As central element
 Insulation PE
 Insulation cross-section 1.5 mm
 Material sheath PUR
 Number of wires 4
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Sheathing material thickness 0.9 mm
 Shielding SF/UTP
 Shielding braid thickness 0.13 mm
 Capacity at 1 kHz 52 nF/km
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Operating voltage (UL rating) 600 V
 Resistance differential 3 %
 Signal propagation time 5.3 ns/m
 Transfer impedance 20 mΩ/m at 10 MHz
 Acceleration 4 m/s²
 Bending cycles 3 Mio
 Fire propagation No
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Pulling force ≤ 150 N
 Resistance to oils in accordance with IEC 60811-2-1
 Resistance to spread of flame in accordance with IEC 60332-1
 Silicone-free Yes
 Speed 180 m/min
 Plug, left RJ45, IP20, male contact, straight, plug, Plastic, shielded
 Plug, right free conductor end
