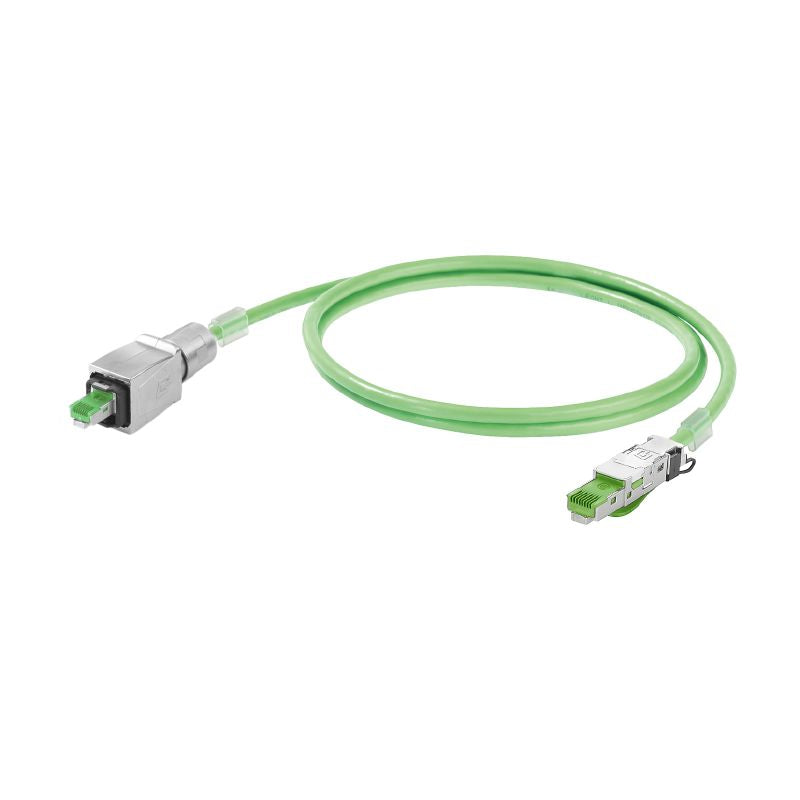

2576460450 - 45m PROFINET Dragline Cable, IP67 PushPull RJ45 Connectors

SKU: SKU: 2576460450 Download PDF

Select a Variant:

2576460450 - 45m PROFINET Dragline Cable, IP67 PushPull RJ45 Connectors

SET THE QTY:

Now $307.29 Web pricing policy

~~BEFORE $0.00~~ Now $307.29 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Optimize your connectivity with this specialized Dragline cable, designed specifically for PROFINET applications Featuring robust RJ45 connectors, it boasts a durable PushPull V14 metal design with an IP67 rating, ensuring protection against water and dust, along with an IP20 rating for additional versatility This cable adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, offering reliability and performance for your network needs.

With an impressive length of 45 meters, it provides ample reach for your setups.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Very good abrasion resistance.

•Fire propagation is minimized; product is halogen-free according to IEC 60754-2.

•Silicone-free construction.

Specifications:

Storage temperature	-50 °C...70 °C
Installation temperature	-20 °C...60 °C
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Delay skew	40 ns/100m
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Resistance differential	3 %
Speed	180 m/min
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Transfer impedance	20 mΩ/m at 10 MHz
Mechanical properties	{'Bending cycles': '3 Mio', 'Min. bending radius, once only': '5 x cable diameter', 'Min. bending radius, repetitive': '7.5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'Resistance to spread of flame': 'in accordance with IEC 60332-1'}
Plug left	RJ45, IP67, male contact, straight, PushPull V14, plug, Plastic, shielded
Plug right	RJ45, IP20, male contact, straight, plug, Zinc diecast, shielded
