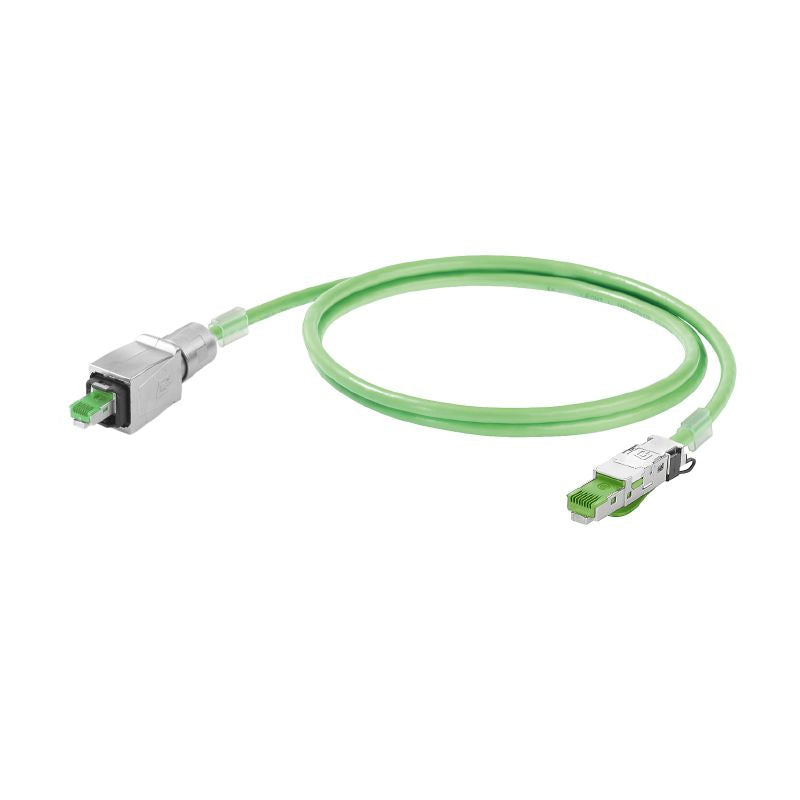

2576460030 - 3m PROFINET Dragline Cable, RJ45 IP67/IP20, Cat.5 Standards

2576460030 - 3m PROFINET Dragline Cable, RJ45 IP67/IP20, Cat.5 Standards

SKU: 2576460030 Download PDF

Variant:
  • 2576460030 - 3m PROFINET Dragline Cable, RJ45 IP67/IP20, Cat.5 Standards
Now $90.59
BEFORE   $0.00 Now $90.59
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Unleash the power of connectivity with this specialized 3-meter dragline cable, tailored for PROFINET applications Equipped with robust RJ45 connectors, it boasts impressive IP67 and IP20 ratings, ensuring protection against dust and water in various environments This cable adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, guaranteeing reliable performance Additionally, it holds multiple approvals, including RoHS compliance, confirming that it meets strict environmental safety requirements for peace of mind during use.

Features and Benefits:

    •Compliant without exemption to RoHS.

    •The cable structure features a star-quad arrangement of wire cores with a shielding configuration that uses aluminum foil and copper wiring.

    •Very good abrasion resistance and high flexibility.

    •Halogen-free according to IEC 60754-2.

    •Silicone-free construction.

Specifications:

 Length 3 m
 Operating voltage (UL rating) 600 V
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Loop resistance 120 Ω/km
 Bending cycles 3 Mio
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Resistance to oils in accordance with IEC 60811-2-1
 Fire propagation No
 Filler As central element
 Shielding SF/UTP
 Diameter of inner sheathing 3.9 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Completeness of shielding 85 %
 Abrasion resistance very good
 Acceleration 4 m/s²
 Speed 180 m/min
