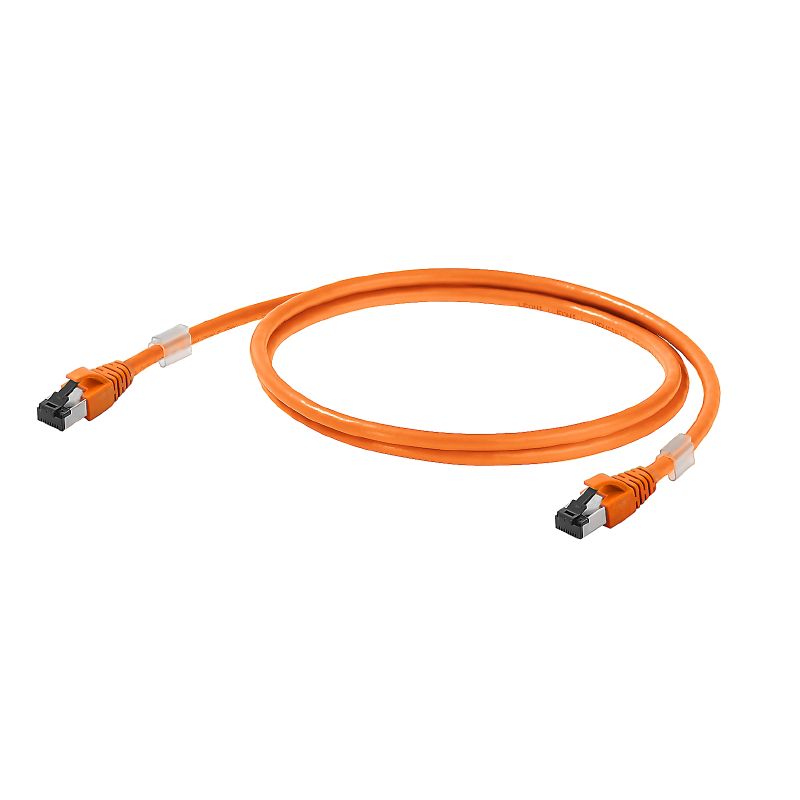

2563810200 - 20m Cat.6A Patch Cable, RJ45, IP 20, LSZH

2563810200 - 20m Cat.6A Patch Cable, RJ45, IP 20, LSZH

SKU: 2563810200   Download PDF

Select a Variant:
  • 2563810200 - 20m Cat.6A Patch Cable, RJ45, IP 20, LSZH
Qty:
Now $48.27   Web pricing policy
BEFORE   $0.00 Now $48.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your networking experience with this 20-meter patch cable, equipped with RJ45 connectors that are rated for IP 20 Compliant with Cat6A standards for lengths under 20 meters and Class EA for lengths over 20 meters as specified by ISO/IEC 11801:2010, this cable ensures reliable performance Constructed from LSZH materials, it is an eco-friendly choice suitable for a variety of settings.

Features and Benefits:

    •Compliant with RoHS standards without exemption.

    •Halogen-free construction based on IEC 60754-2.

    •Shielded design with S/FTP structure.

    •Twisted pair wiring arrangement for better performance.

    •It can be utilized in application-specific communication cable facilities as outlined by ANSI/TIA/EIA-568-B.2-10 and related standards..

Specifications:

 Length 20 m
 Operating temperature -20 °C to 60 °C
 Installation temperature 0 °C to 50 °C
 Cable structure Twisted pair with 4*2*AWG 27/7 configuration
 Sheath diameter (max) 5.9 mm
 Sheath diameter (min) 5.5 mm
 Current-carrying capacity at 50 °C 1 A
 Operating voltage 50 V DC
 Connector standard IEC 60603-7-51
 Coupling attenuation up to 1000 MHz 80 dB
 Delay skew 2.5 ns/100m
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
