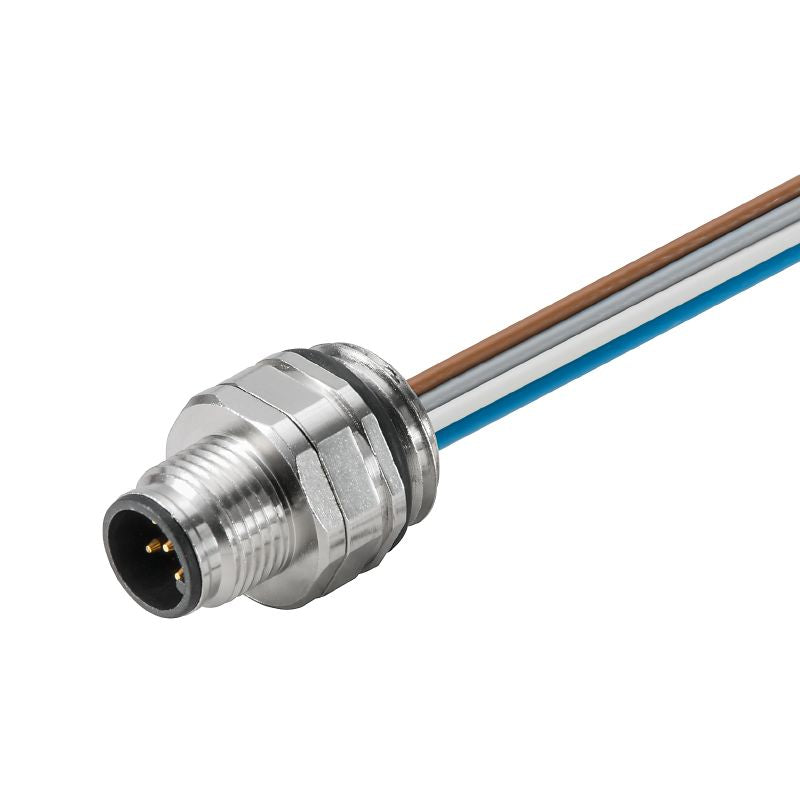

2466940000 - M12 Built-in Plug Connector with 2m Cable Length

2466940000 - M12 Built-in Plug Connector with 2m Cable Length

SKU: SKU: 2466940000 Download PDF

Variant:
  • 2466940000 - M12 Built-in Plug Connector with 2m Cable Length
Regular price Now $11.43
Regular price BEFORE   $0.00 Sale price Now $11.43
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This product features an integrated design with M12 connectors, showcasing a straight pin layout and a mounting thread of M16 x 15 With 4 poles, it offers a cable length of 2 meters for reliable connectivity Perfect for various applications where secure connections are essential.

Features and Benefits:

    •Gold-plated contact surface.

    •Brass housing material with nickel-plating.

    •IP67 protection degree when screwed in.

    •Suitable for a temperature range of -30 to +90 °C.

    •Supports ≥ 100 plugging cycles.

Specifications:

 Core cross-section 0.34 mm²
 Number of poles 4
 PE function No
 Strand / cable length 2 m
 Coding A-coded
 Pollution severity 3
 Temperature range of housing -30…+90 °C
 Connection 1 M12
 Connection 2 Flying wires
 Mounting thread M 16 x 1.5
 Connector standard IEC 61076-2-101
 ETIM 6.0 EC002635
 ETIM 7.0 EC003570
 ETIM 8.0 EC003570
 ETIM 9.0 EC003570
 ETIM 10.0 EC003570
 ECLASS 9.0 27-44-01-03
 ECLASS 9.1 27-44-01-03
 ECLASS 10.0 27-44-01-03
 ECLASS 11.0 27-44-01-03
 ECLASS 12.0 27-44-01-03
 ECLASS 13.0 27-44-01-03
 ECLASS 14.0 27-44-01-03
 ECLASS 15.0 27-44-01-03
