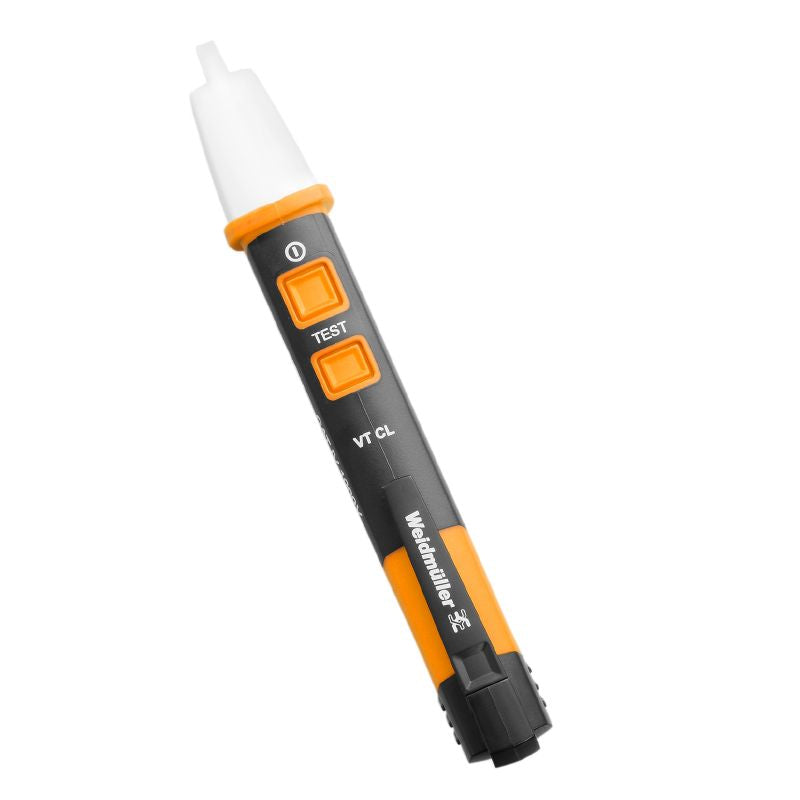

2436660000 - IP65 Rated VT CL Cable Tester with Visual & Acoustic Display
2436660000 - IP65 Rated VT CL Cable Tester with Visual & Acoustic Display
SKU: SKU: 2436660000 Download PDF
- 2436660000 - IP65 Rated VT CL Cable Tester with Visual & Acoustic Display
- 2436660000 - IP65 Rated VT CL Cable Tester with Visual & Acoustic Display
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the VT CL, a specialized measuring device ideal for cable detection and testing applications This user-friendly tool complies with RoHS standards and boasts both visual and auditory indicators for easy monitoring Powered by a 15 V AAA battery, the VT CL is capable of measuring in CAT IV environments, handling voltages from 90 V AC to 1000 V AC with ease With an impressive IP65 rating, this device offers robust protection against dust and water.
Additionally, it meets the stringent requirements of DIN EN 61010-1 and DIN EN 61326 norms, ensuring reliability and safety in your measurements.
Features and Benefits:
•Visual & acoustic display.
•Suitable for CAT IV 1000 V measurements.
•IP65 protection degree.
•RoHS compliant.
•Testing tools.
•Cable detection.
Specifications:
| Depth | 23 mm |
| Height | 25 mm |
| Width | 155 mm |
| Length | 155 mm |
| Net weight | 55.1 g |
| Battery type | 1.5 V type AAA battery |
| Rated voltage, max. | 1000 V AC |
| Rated voltage, min. | 90 V AC |
| RoHS Exemption | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| Measuring range category | CAT IV 1000 V |
| Tested according to | DIN EN 61010-1, DIN EN 61326 |
