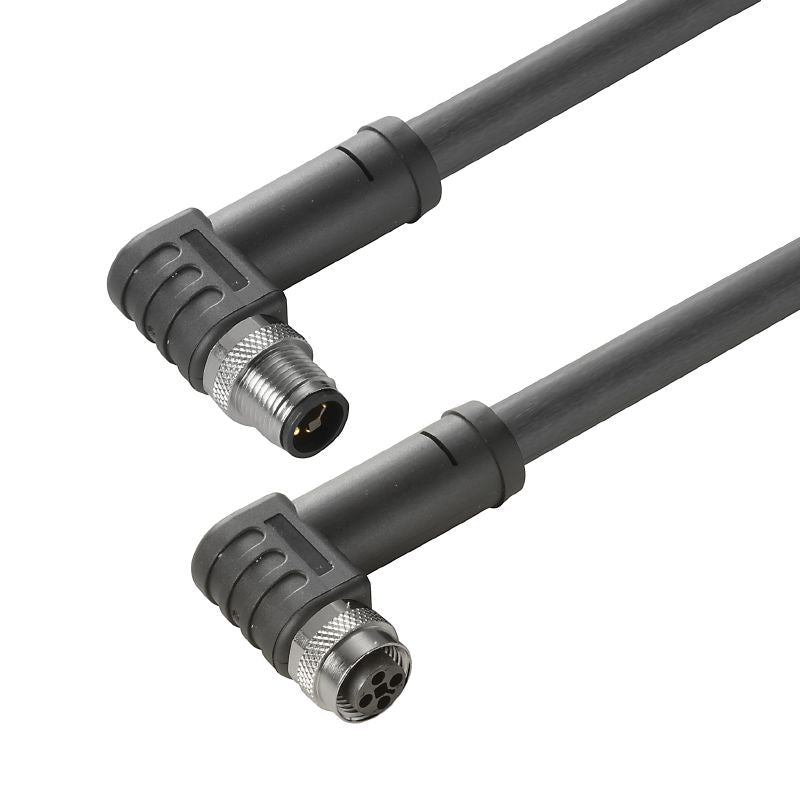

2050920500 - 5m M12 Power Cable, 4-Pole with Angled Sockets

2050920500 - 5m M12 Power Cable, 4-Pole with Angled Sockets

SKU: SKU: 2050920500   Download PDF

Select a Variant:
  • 2050920500 - 5m M12 Power Cable, 4-Pole with Angled Sockets
Qty:
Regular price Now $66.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $66.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This power cable is engineered for seamless connectivity with M12 connectors on both ends Stretching 5 meters in length, it accommodates 4 poles and features angled sockets for optimal placement Constructed from thermoplastic polyurethane (PUR), this cable is halogen-free and unshielded, making it a reliable choice for various applications.

Features and Benefits:

    •Compliant with RoHS and has an exemption.

    •Capable of bending through at least 10 million cycles.

    •Suitable for cable carriers.

    •Has an operating temperature range of -40 to 90 °C.

Specifications:

 Cable length 5 m
 Core cross-section 2.5 mm²
 Outside diameter 11 mm ± 0.4 mm
 Nominal current 12 A
 Nominal voltage 63 V
 Protection degree IP67 when screwed in
 Temperature range of housing -40 … +85 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 AF size 13 mm

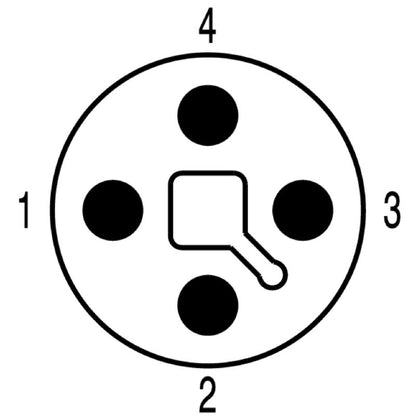

 Coding T-coded
 Connection thread M12 / M12
 Contact surface Gold-plated
 Sheath material PUR
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
