2050870150 - 1.5m M12 Power Cable, 4 Poles, PUR Sheath

2050870150 - 1.5m M12 Power Cable, 4 Poles, PUR Sheath

SKU: SKU: 2050870150   Download PDF

Select a Variant:
  • 2050870150 - 1.5m M12 Power Cable, 4 Poles, PUR Sheath
Qty:
Regular price Now $41.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $41.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

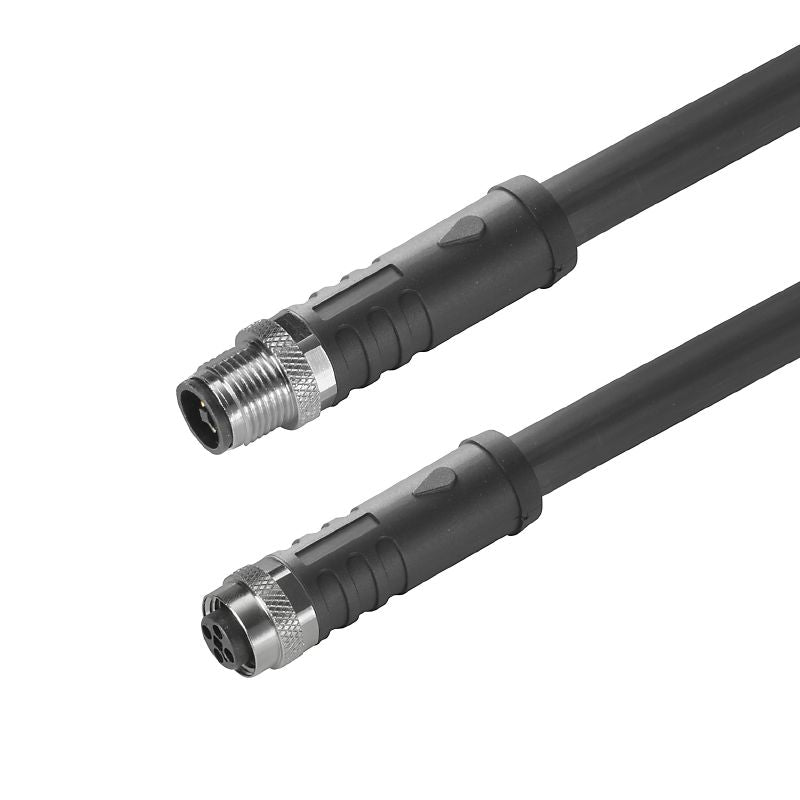

Connect your devices effortlessly with this 15-meter power cable, designed specifically for M12 connectors It features a 4-pole configuration, with a straight socket on one end and a straight pin on the other Constructed from durable, halogen-free PUR material, this unshielded cable ensures reliable performance for various applications.

Features and Benefits:

    •Compliant with RoHS and REACH standards.

    •Temperature range from -40 to 90 °C.

    •Suitable for cable carriers.

    •Gold-plated contact surface.

    •IP67 protection degree when screwed in.

Specifications:

 Cable Length 1.5 m
 Core Cross-Section 2.5 mm²

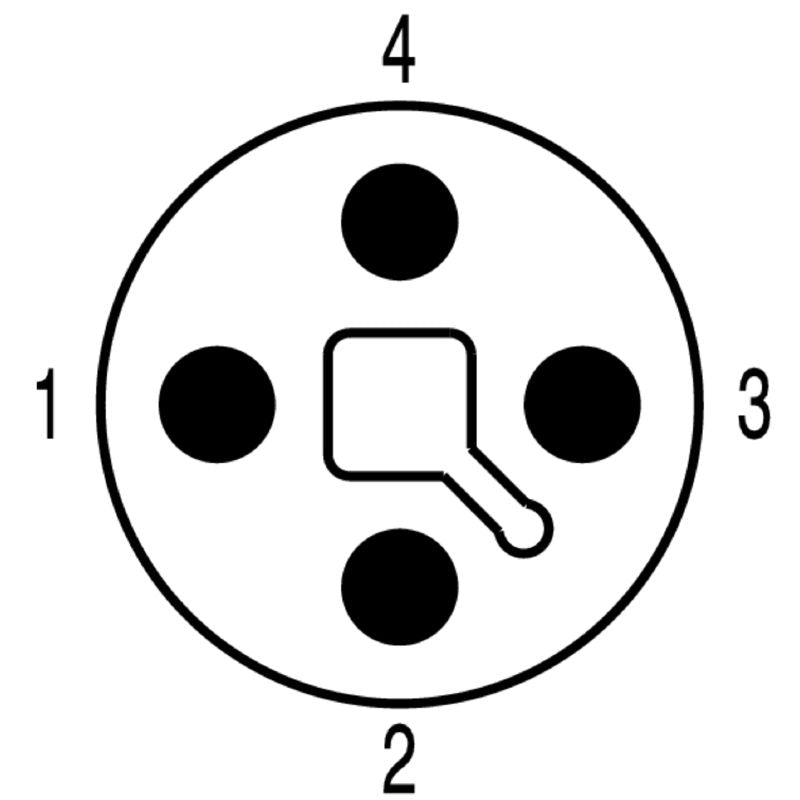

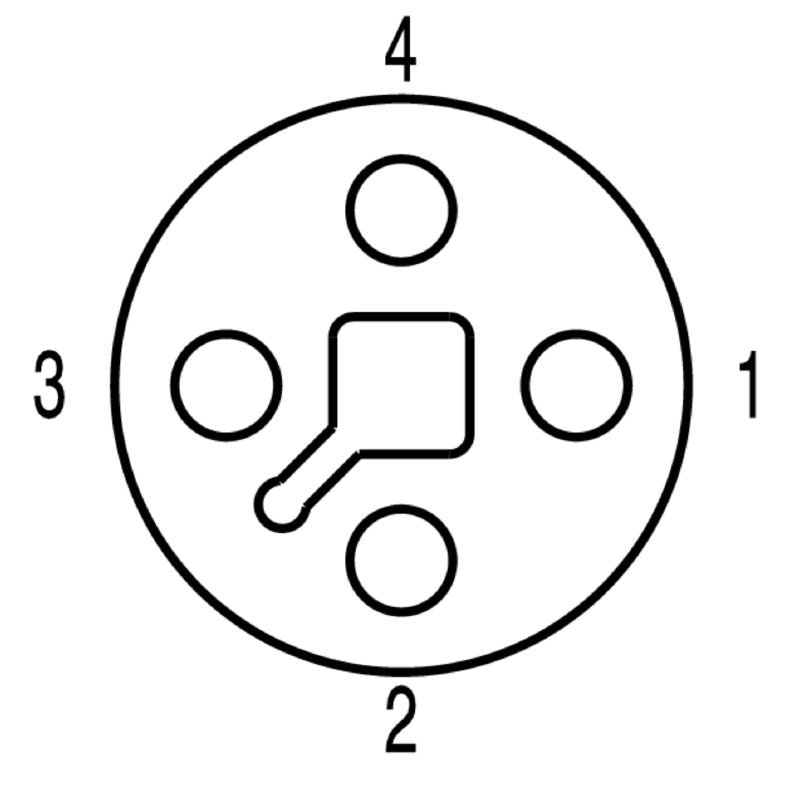

 Number of Poles 4
 Outside Diameter 11 mm ± 0.4 mm
 Nominal Current 12 A
 Nominal Voltage 63 V
 Plugging Cycles ≥ 100
 Bending Radius (Moving) 7.5 x cable diameter
 Bending Radius (Stationary) 4 x cable diameter
 Insulation Resistance 10^8 Ω
 Halogen No
 Sheath Material PUR
 Color black
 Temperature Range of Housing -40 … +85 °C
 Tightening Torque M12: 0.8 - 1.2 Nm
