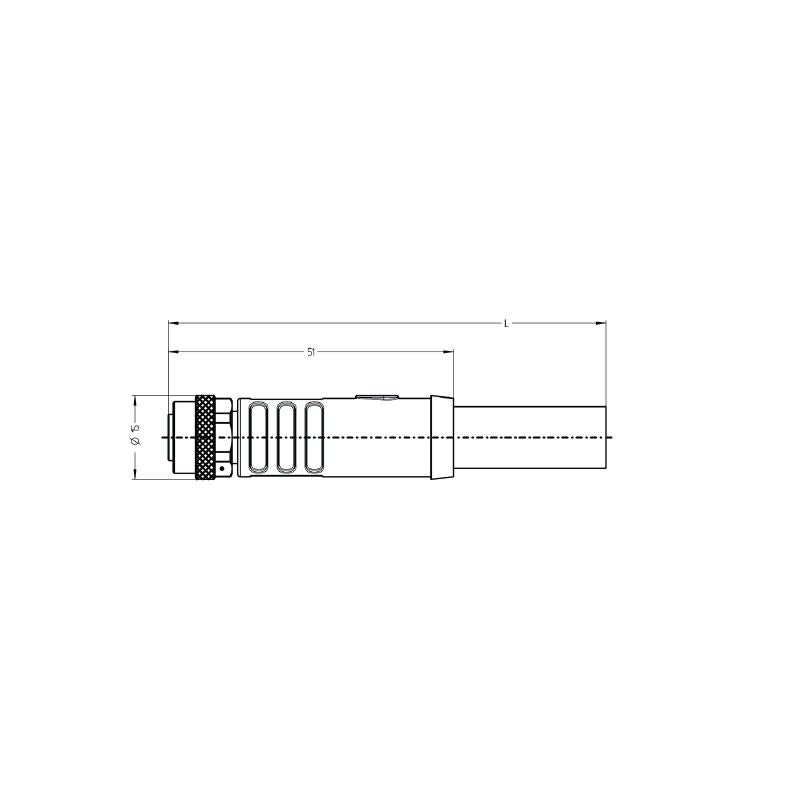

2050680300 - 3m M12 Power Cable, 4 Poles, No Connector

2050680300 - 3m M12 Power Cable, 4 Poles, No Connector

SKU: SKU: 2050680300   Download PDF

Select a Variant:
  • 2050680300 - 3m M12 Power Cable, 4 Poles, No Connector
Qty:
Regular price Now $36.73   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $36.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

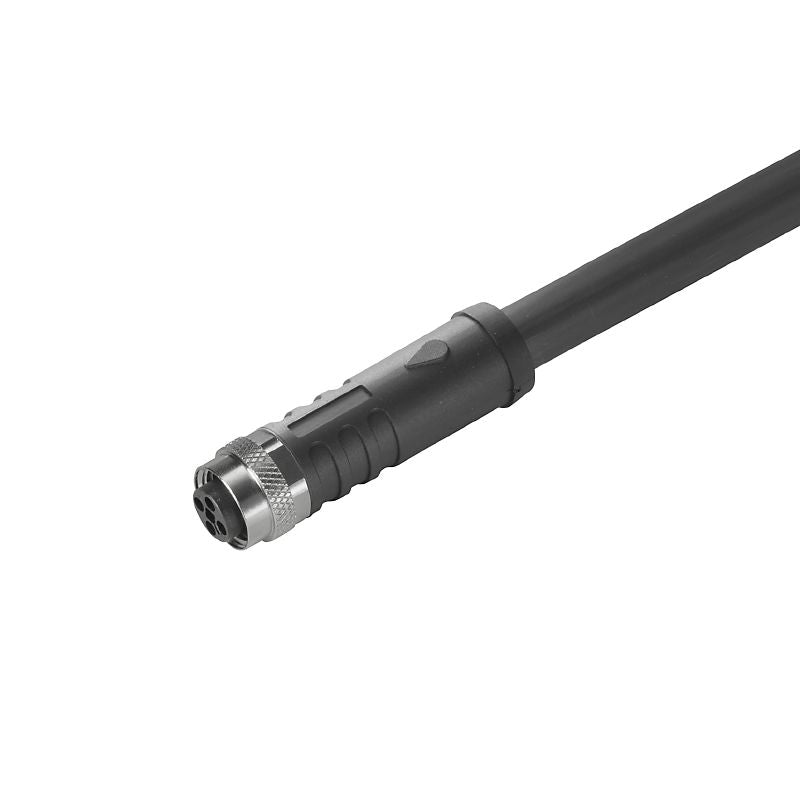

Introducing this versatile power cable, measuring 3 meters in length, equipped with an M12 connector on one end This cable features four poles and boasts a streamlined design without shielding, ensuring reliability Crafted from halogen-free PUR material, the outer sheath enhances durability and safety.

Features and Benefits:

    •Suitable for cable carriers.

    •Female socket, straight configuration.

    •Gold-plated contact surface.

    •Rated for a nominal current of 12 A.

    •Insulation resistance of 10^8 Ω.

    •Protection degree of IP67 when connected.

Specifications:

 Acceleration 5 m/s²
 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 3 m

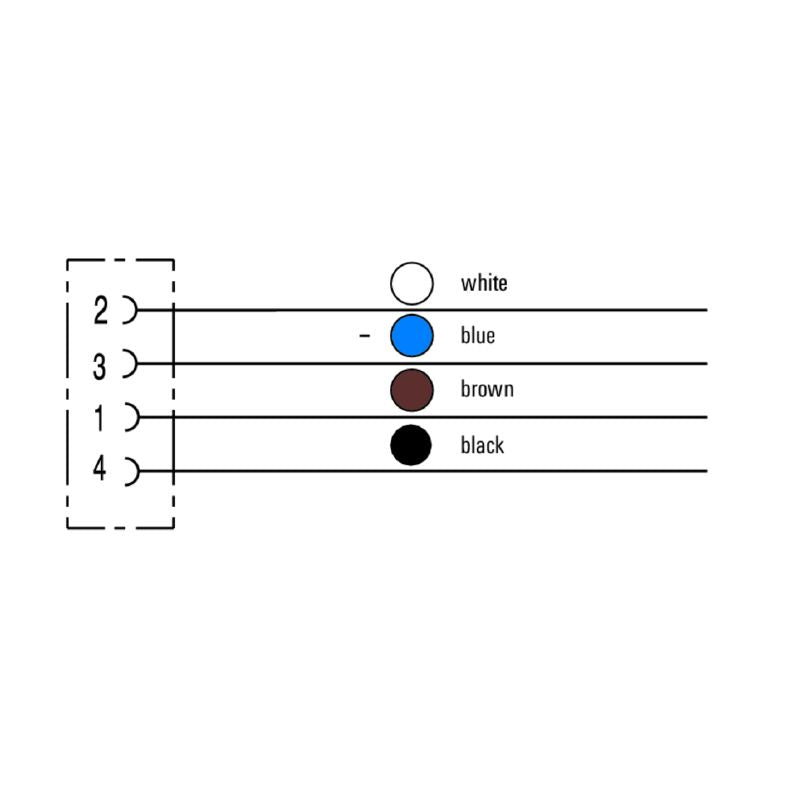

 Colour coding black, blue, white, brown
 Core cross-section 2.5 mm²
 Insulation PP

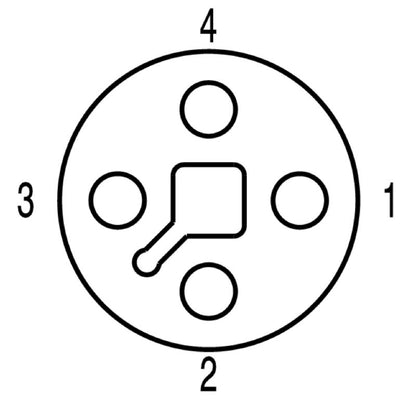

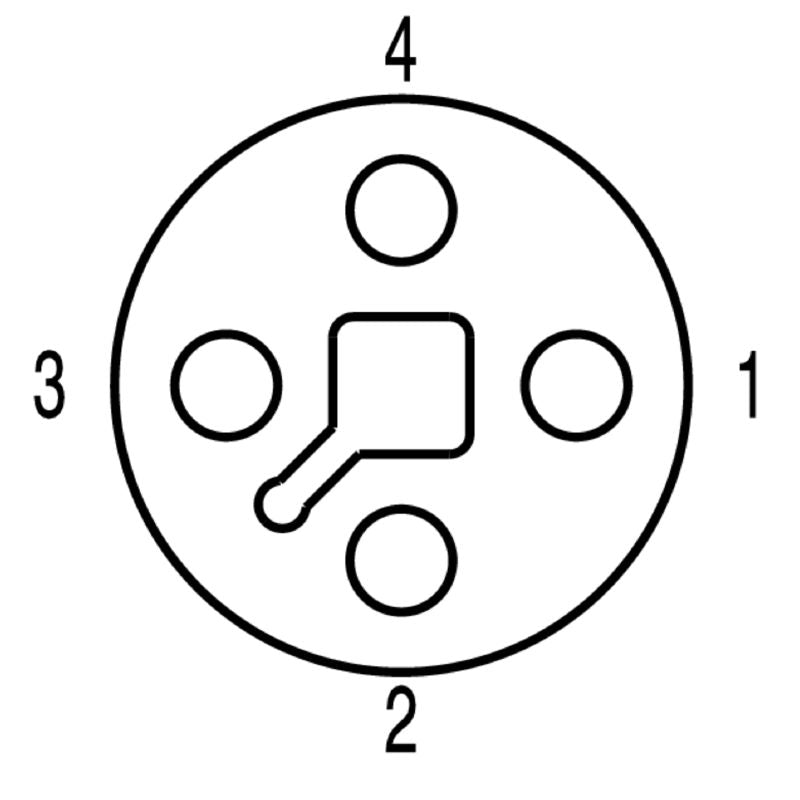

 Number of poles 4
 Outer diameter 11 mm ± 0.4 mm
 Sheath material PUR
 Temperature range, moving -40...90 °C
 Temperature range, stationary -50...90 °C
 Connection thread M12
 Nominal voltage 63 V
 Electrical properties Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Pollution severity 3
 Tightening torque M12: 0.8 - 1.2 Nm
