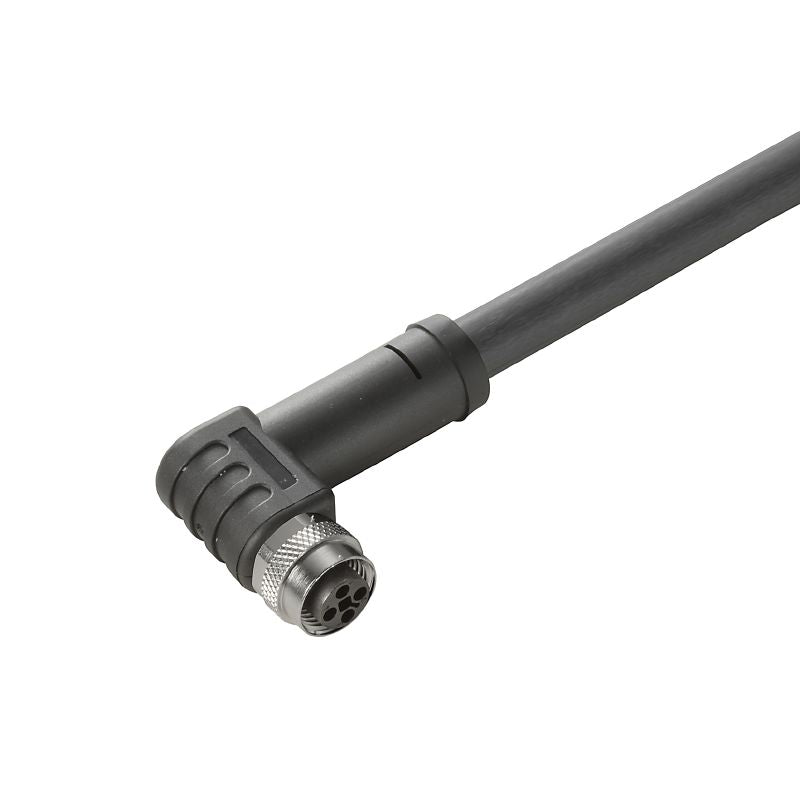

2050560300 - 3m M12 Power Cable with 4 Poles, Halogen-Free

2050560300 - 3m M12 Power Cable with 4 Poles, Halogen-Free

SKU: SKU: 2050560300   Download PDF

Select a Variant:
  • 2050560300 - 3m M12 Power Cable with 4 Poles, Halogen-Free
Qty:
Regular price Now $32.56   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $32.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile power cable, expertly designed with a single connector end in an M12 configuration featuring four poles This cable extends to a generous length of 3 meters and is free from shielding and LED components Crafted with a durable halogen-free PUR sheath, it offers reliability and safety for various applications Ideal for your powering needs, this cable balances functionality with essential features.

Features and Benefits:

    •Non-shielded design.

    •No LED integration.

    •Halogen-free sheath material.

    •Suitable for use with cable carriers.

Specifications:

 Cable length 3 m
 Number of poles 4
 Core cross-section 1.5 mm²
 Outside diameter 9.6 mm ± 0.3 mm
 Sheath material PUR
 Nominal current 12 A
 Nominal voltage 63 V
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Temperature range, moving -40...90 °C
 Temperature range, stationary -50...90 °C
 Protection degree IP67 when screwed in
 Plugging cycles ≥ 100
 Insulation resistance 10^8 Ω
 Housing main material PUR
 Contact surface Gold-plated
 Tightening torque M12: 0.8 - 1.2 Nm
