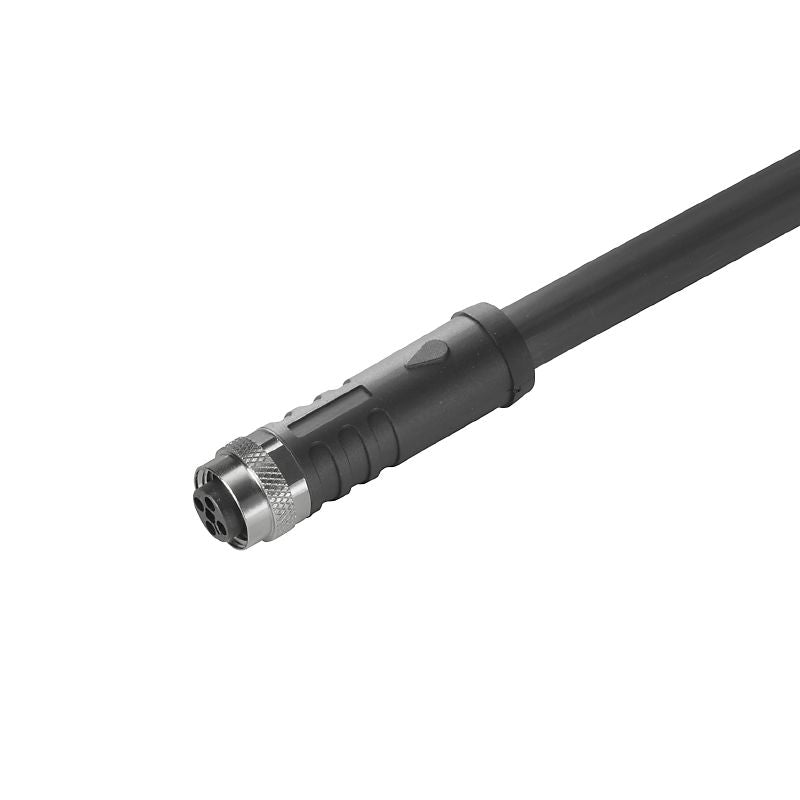

2050490300 - 3m M12 4-Pole Power Cable, Unconnector End

2050490300 - 3m M12 4-Pole Power Cable, Unconnector End

SKU: SKU: 2050490300   Download PDF

Select a Variant:
  • 2050490300 - 3m M12 4-Pole Power Cable, Unconnector End
Qty:
Regular price Now $32.56   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $32.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

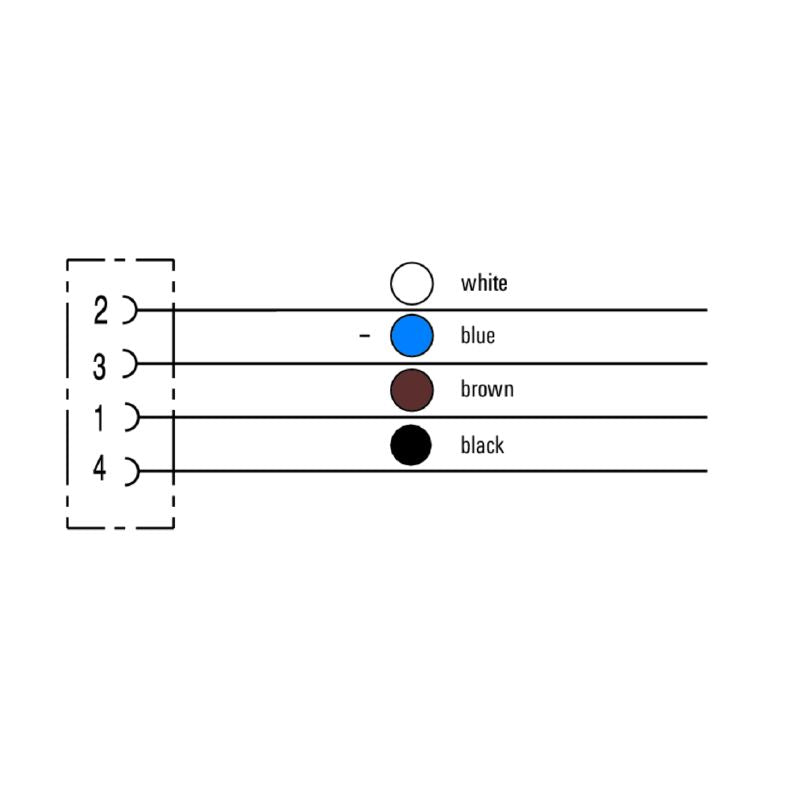

Introducing a versatile power cable tailored for your needs This 3-meter cable is equipped with an M12 connector type and features a 4-pole straight female socket at one end It is designed without shielding and does not include any LED indicators The cable's sheath is constructed from halogen-free PUR, ensuring a safe and environmentally friendly option for your electrical projects.

Features and Benefits:

    •No configurable cable length.

    •Resistant to welding beads: No.

    •Suitable for cable carriers: Yes.

Specifications:

 Cable length 3 m

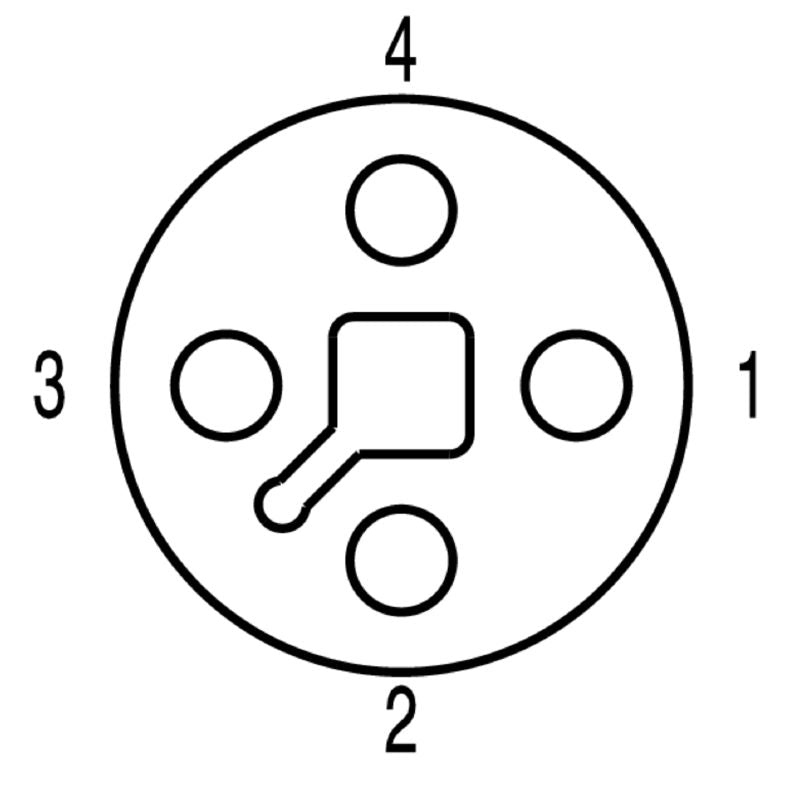

 Number of poles 4
 Core cross-section 1.5 mm²
 Outer diameter 9.6 mm ± 0.3 mm
 Nominal current 12 A
 Nominal voltage 63 V
 Protection degree IP67 when screwed in
 Temperature range, moving -40...90 °C
 Temperature range, stationary -50...90 °C
 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Contact surface Gold-plated
 Housing main material PUR
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 pollution severity 3
 Tightening torque M12: 0.8 - 1.2 Nm
 Coding T-coded
 General standard IEC 61076-2-111
 Halogen No
 LED No
