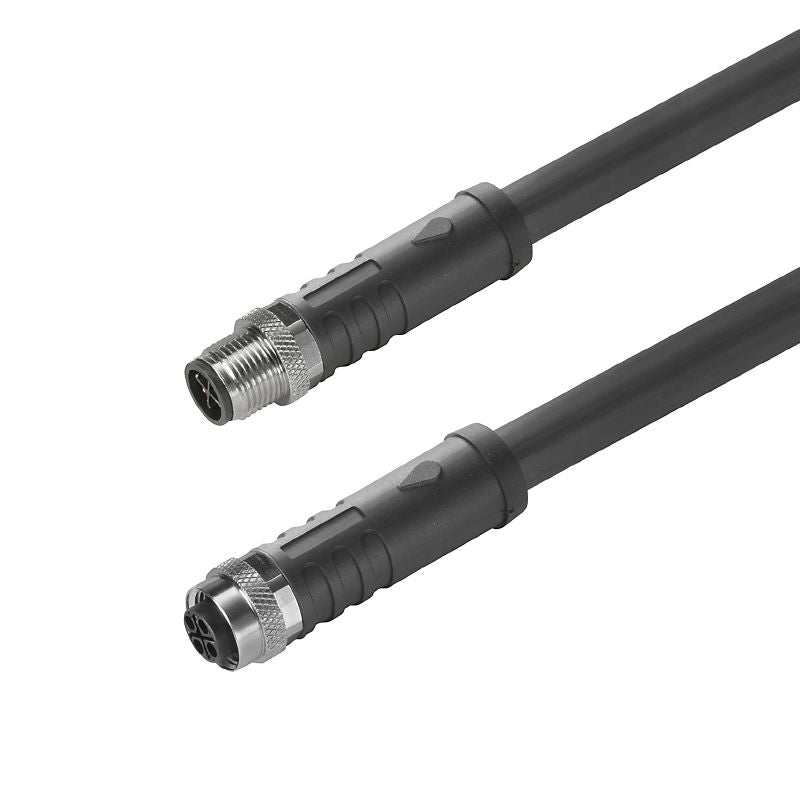

2050060450 - 4.5m Shielded M12 Power Cable with 3 Poles

2050060450 - 4.5m Shielded M12 Power Cable with 3 Poles

SKU: SKU: 2050060450   Download PDF

Select a Variant:
  • 2050060450 - 4.5m Shielded M12 Power Cable with 3 Poles
Qty:
Regular price Now $46.81   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $46.81 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable power cable specifically crafted for M12 device connections This 45-meter cable features a straightforward pin and socket design with three poles, including two standard poles accompanied by a protective earth Constructed from durable PUR material, it is shielded and free from halogens, ensuring safety and longevity Please note, this cable does not include built-in LEDs.

Features and Benefits:

    •Compliant with RoHS standards.

    •Suitable for cable carriers.

    •Gold-plated contact surface.

    •IP67 protection degree upon screwing in.

    •Resistant to extreme temperatures from -40 to 80 °C.

Specifications:

 Cable length 4.5 m
 Core cross-section 1.5 mm²
 Nominal current 12 A
 Nominal voltage 600 V
 Outside diameter 8.5 mm ± 0.3 mm

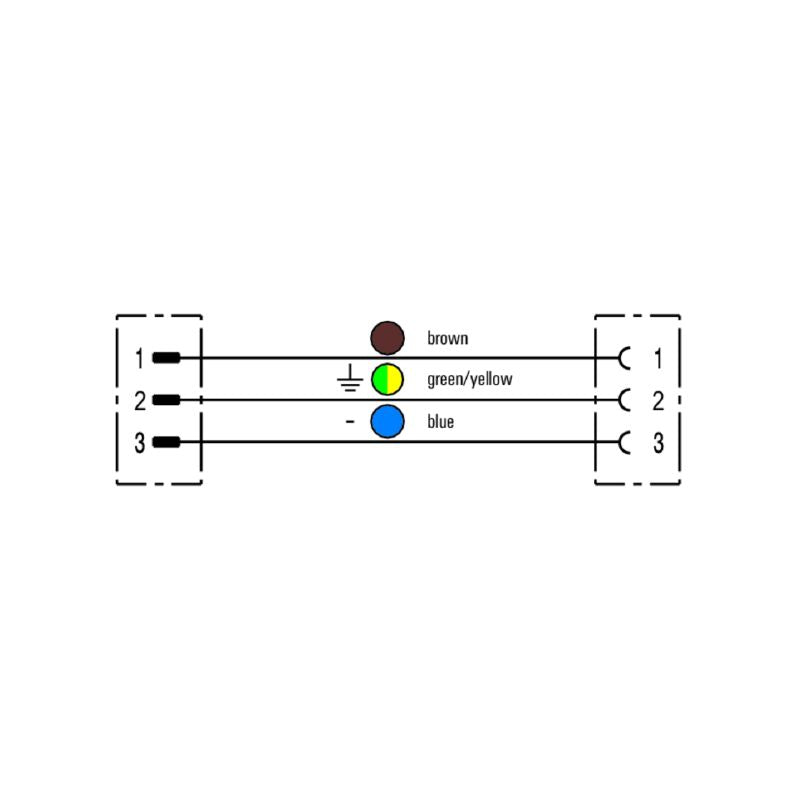

 Number of poles 3 (2 + PE)
 Bending cycles 10 Mio
 Temperature range, moving -40...80 °C
 Temperature range, stationary -50...80 °C
 Insulation resistance 10^8 Ω

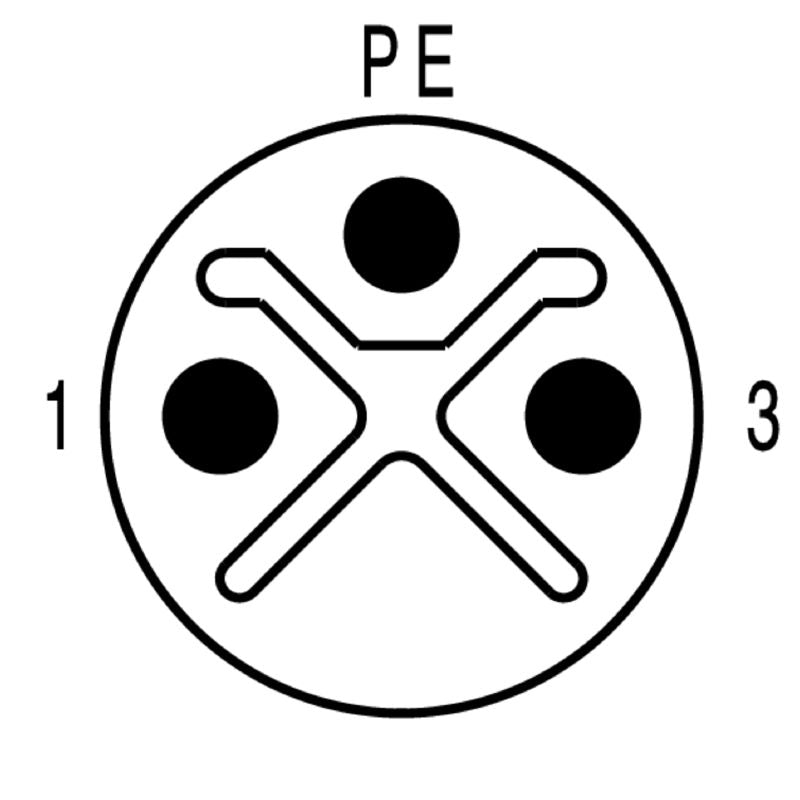

 Plug, left M12, S-coded, IP67, male contact, straight, Plastic, unshielded

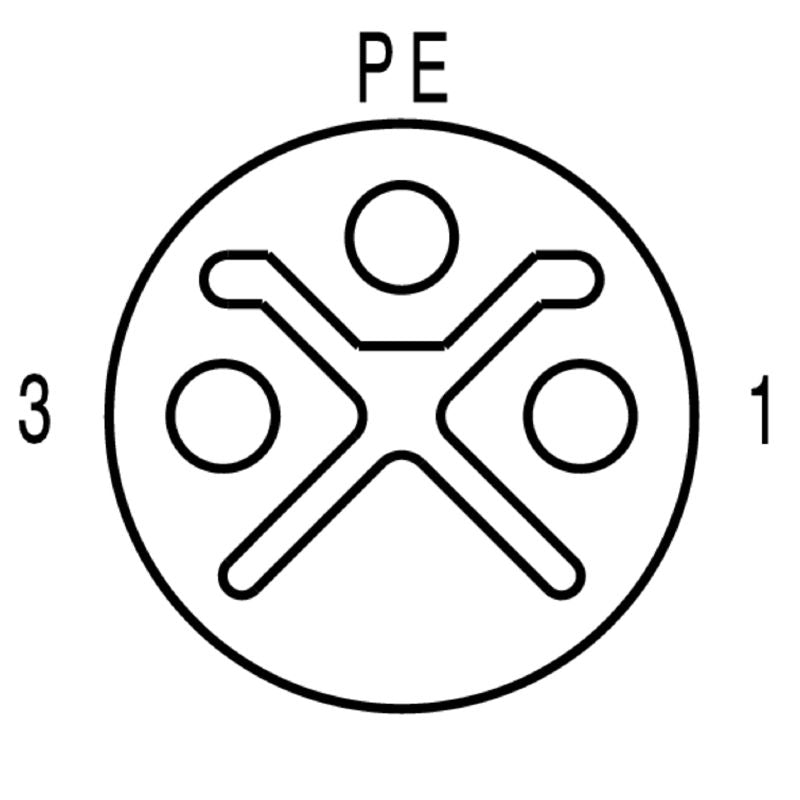

 Plug, right M12, S-coded, IP67, female contact, straight, Plastic, unshielded
 Sheath material PUR
