2050060200 - 2m Unshielded M12 Power Cable with 3 Poles

2050060200 - 2m Unshielded M12 Power Cable with 3 Poles

SKU: SKU: 2050060200 Download PDF

Variant:
  • 2050060200 - 2m Unshielded M12 Power Cable with 3 Poles
Regular price Now $35.63
Regular price BEFORE   $0.00 Sale price Now $35.63
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

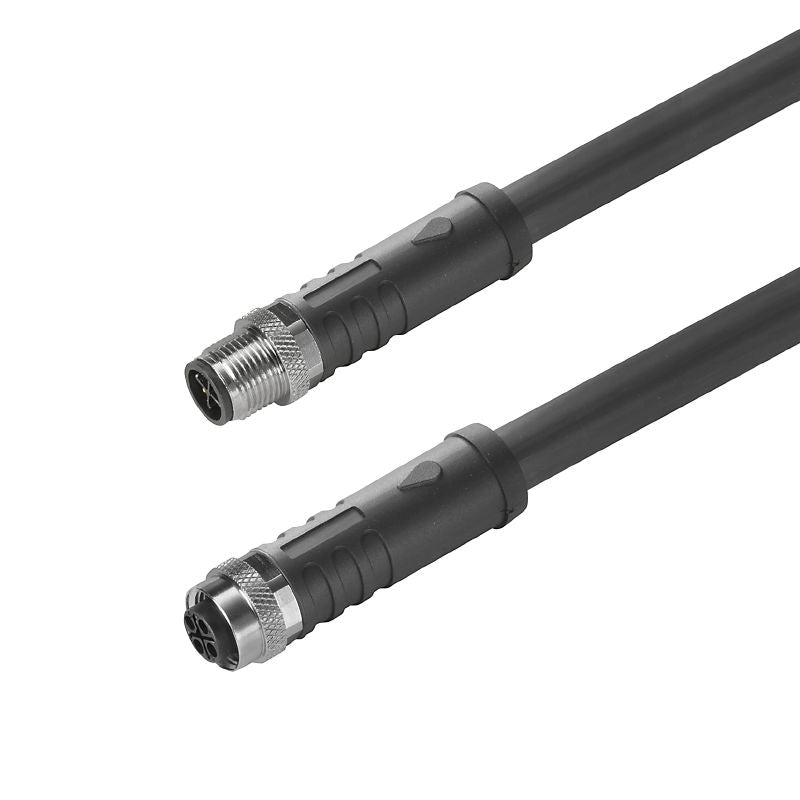

This M12 power cable provides a reliable connection with connectors located at both ends Constructed with a durable design, it features 3 poles (2 + PE) and measures 2 meters in length The cable showcases a straight format on each side and is not shielded Made from PUR sheath material, this product is halogen-free and complies with RoHS regulations, ensuring it meets various industry standards for safety and performance.

Features and Benefits:

    •Compliant with RoHS.

    •Capable of withstanding bending cycles of up to 10 million.

    •Operational temperature range from -40°C to +80°C.

    •IP67 protection when secured.

    •Gold-plated contact surface.

    •Suitable for use in cable carriers.

Specifications:

 Cable length 2 m

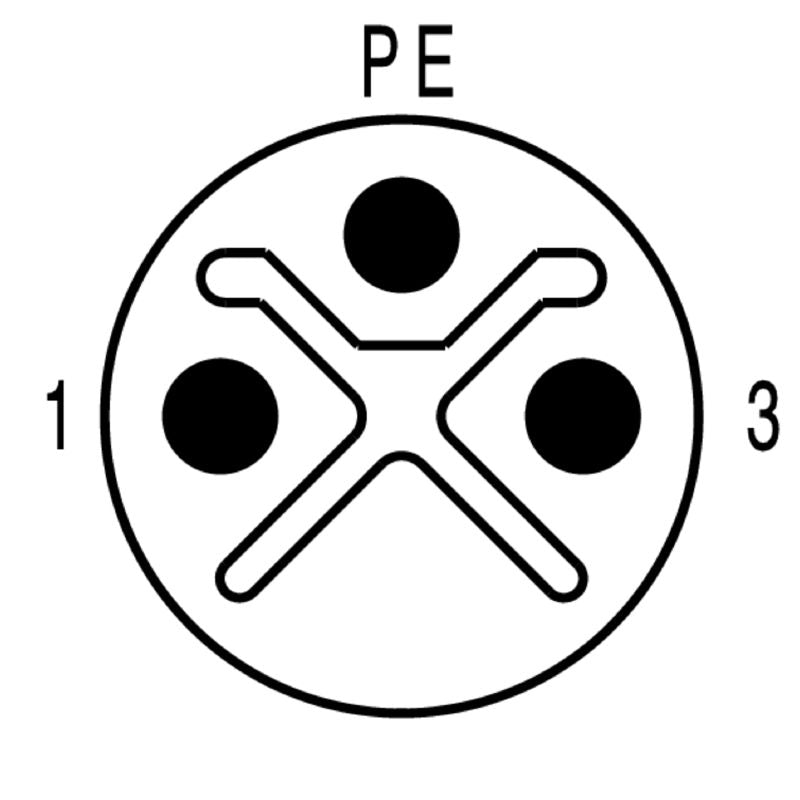

 Number of poles 3 (2 + PE)
 Core cross-section 1.5 mm²
 Outside diameter 8.5 mm ± 0.3 mm
 Nominal current 12 A
 Nominal voltage 600 V
 Insulation resistance 10^8 Ω
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Sheath material PUR
 Speed 5 m/s
 Plugging cycles ≥ 100
