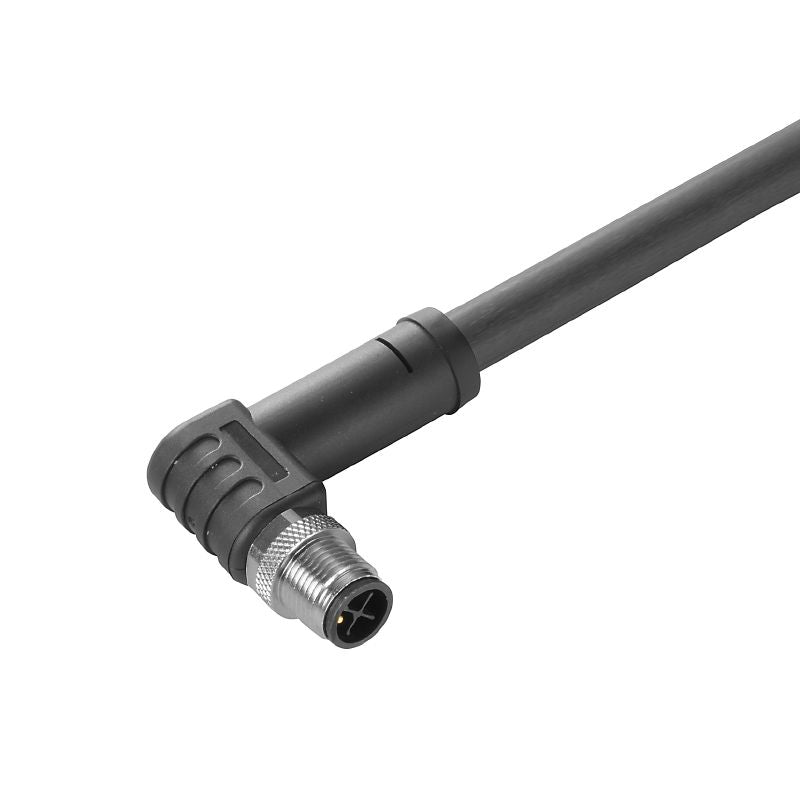

2050050500 - 5m 3-Pole Power Cable with PUR Sheath

2050050500 - 5m 3-Pole Power Cable with PUR Sheath

SKU: SKU: 2050050500 Download PDF

Variant:
  • 2050050500 - 5m 3-Pole Power Cable with PUR Sheath
Regular price Now $35.70
Regular price BEFORE   $0.00 Sale price Now $35.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable 5-meter power cable, engineered for versatility with a design featuring three poles: two conductors and a protective earth This cable is unshielded and does not feature an LED indicator, ensuring a streamlined design for your electrical needs Crafted from high-quality PUR sheath material, it is halogen-free, providing an eco-friendly option for your power requirements Perfect for various applications where a connector is unnecessary on one end.

Features and Benefits:

    •Compliant with RoHS regulations.

    •No halogen content.

    •Insulation made from PP.

    •Connector standard: IEC 61076-2-111.

    •Bending radius of 7.5 times cable diameter for moving applications and 4 times for stationary use.

Specifications:

 Cable length 5 m

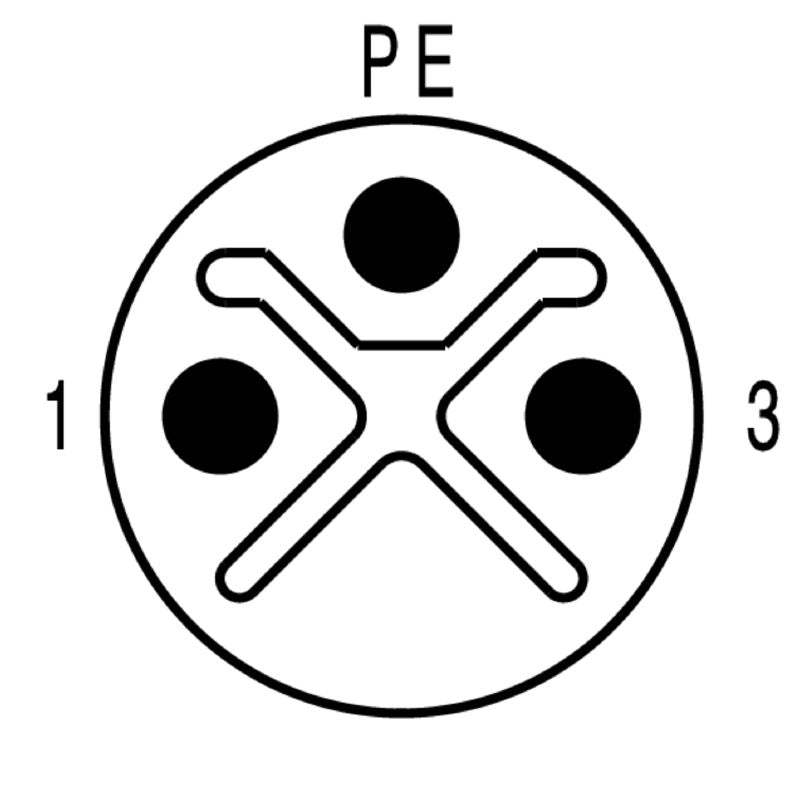

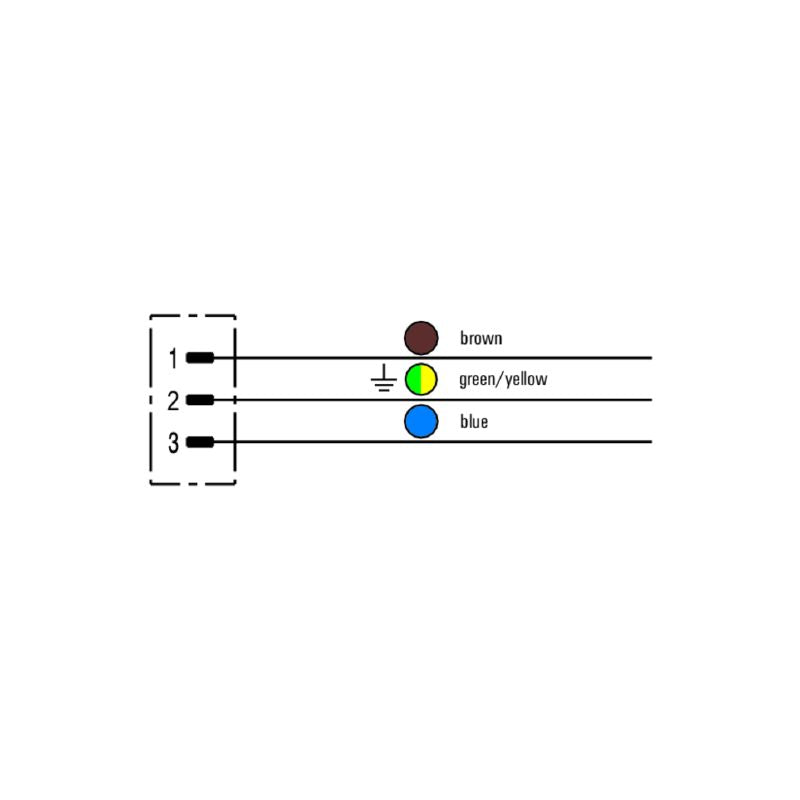

 Number of poles 3 (2 + PE)
 Core cross-section 1.5 mm²

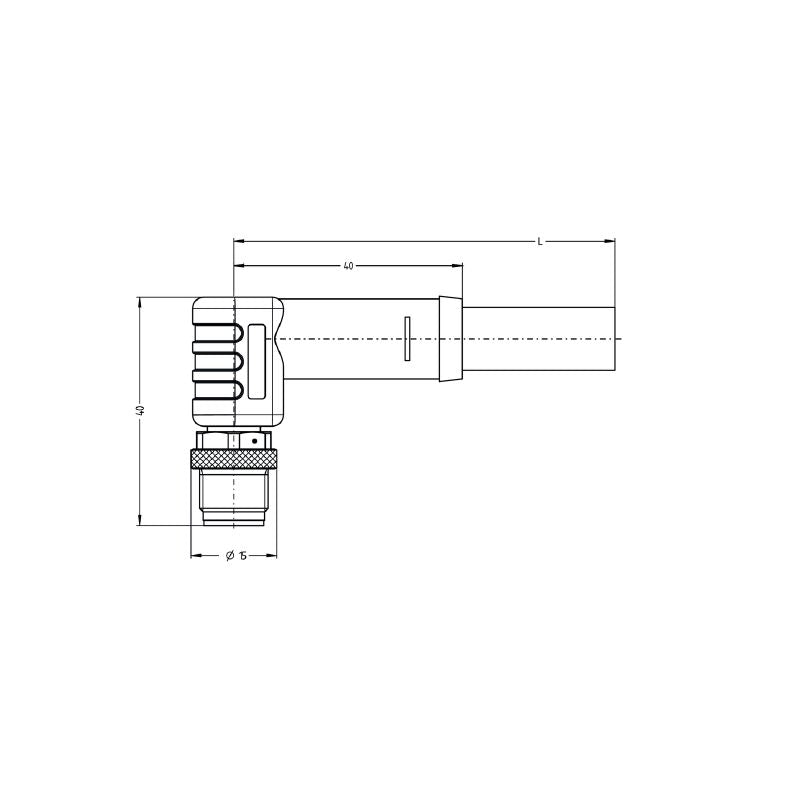

 Outside diameter 8.5 mm ± 0.3 mm
 Nominal current 12 A
 Nominal voltage 600 V
 Protection degree IP67
 Temperature range, moving -40...80 °C
 Temperature range, stationary -50...80 °C
 Sheath material PUR
 Weight 300 g
