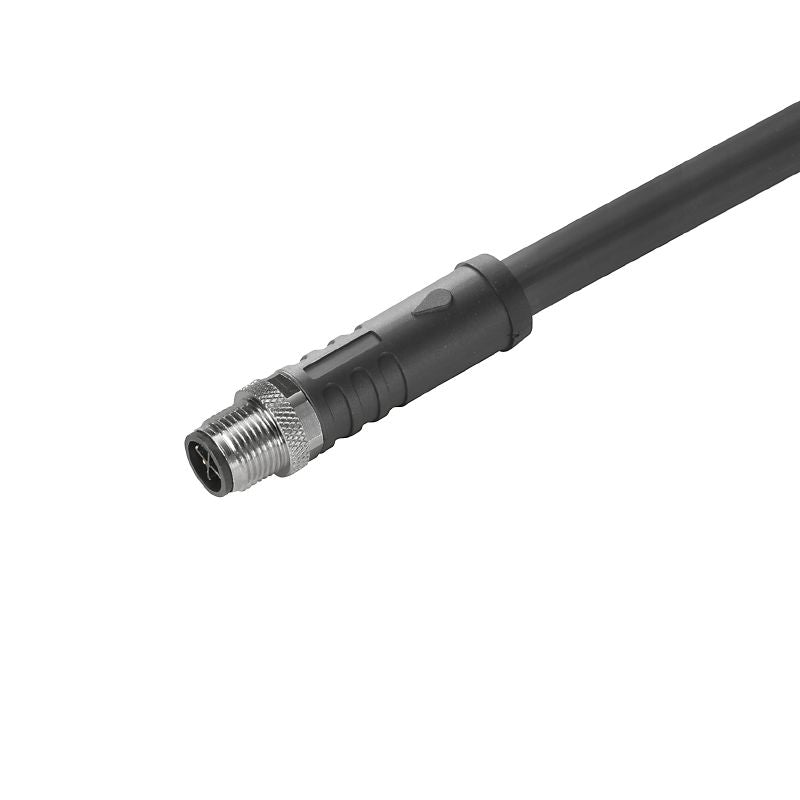

2050021000 - 10m Halogen-Free 3-Pole Power Cable, 1.5mm²

2050021000 - 10m Halogen-Free 3-Pole Power Cable, 1.5mm²

SKU: SKU: 2050021000   Download PDF

Select a Variant:
  • 2050021000 - 10m Halogen-Free 3-Pole Power Cable, 1.5mm²
Qty:
Regular price Now $90.48   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $90.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

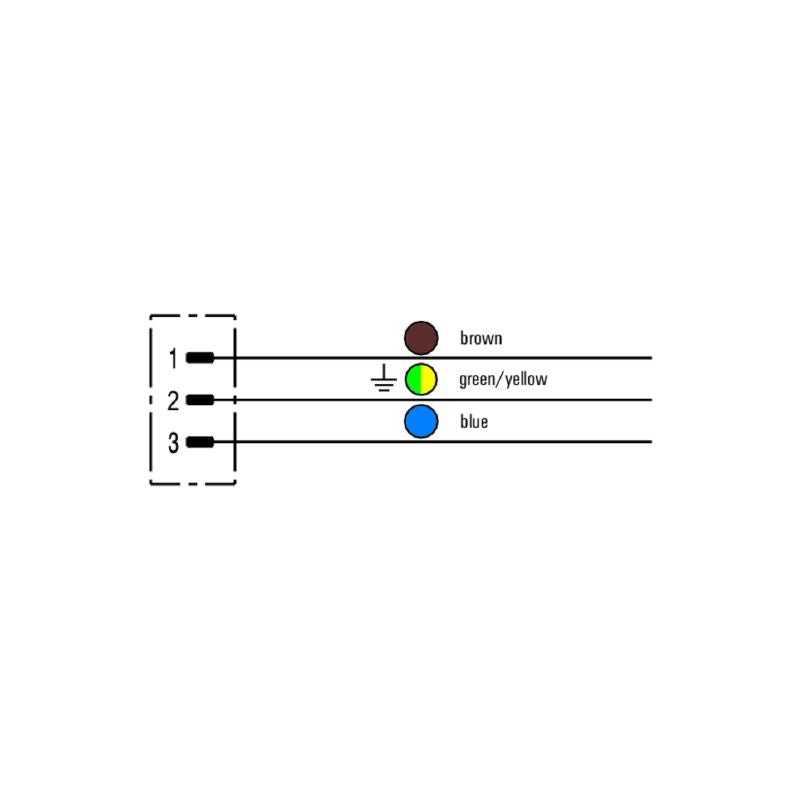

Introducing a robust power cable that measures an impressive 10 meters in length, tailored for a versatile 3-pole setup (2 + PE) without a connector on one end Crafted from halogen-free polyurethane (PUR), this cable offers excellent durability and is designed without shielding or LED features, making it a functional choice for various applications.

Features and Benefits:

    •Net weight is 500g.

    •Compliant with RoHS exemption 6c.

    •Suitable for cable carriers.

    •Plug left is M12, S-coded, IP67 with a straight, unshielded male contact.

    •Outer cladding adheres to UL AWM style 20234 for high voltage.

    •The cable is capable of withstanding temperature ranges from -40 to 80 °C when moving and -50 to 80 °C when stationary.

Specifications:

 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 10 m
 Core cross-section 1.5 mm²
 Nominal current 12 A
 Nominal voltage 600 V
 Plugging cycles ≥ 100
 Protection degree IP67 when screwed in
 Temperature range of housing -40 … +85 °C
 Insulation resistance 10^8 Ω
 Housing main material PUR
 Speed 5 m/s
 Acceleration 5 m/s²
